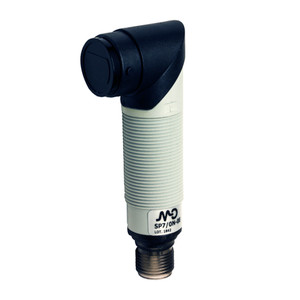

Datasensing SP7/0P-0A Sensors
Datasensing
$115.54
The Datasensing SP7/0P-0A Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 400mm, these sensors are ideal for applications requiring long-distance detection. The sensors come equipped with a PNP L/D selectable output and a trimmer for sensitivity adjustment, ensuring flexibility and accuracy in various environments.
Built with robust materials, the SP7/0P-0A sensors boast an IP67 protection degree, safeguarding against electrical damages and environmental factors. The LED status indicator provides clear operational feedback, while the short-circuit and reverse polarity protection enhance safety and durability. With a switching frequency of 250Hz and a rapid response time of 2ms, these sensors deliver high-performance operation.
The sensors are housed in a compact M18 x 1/L=61.6mm design, with a 2m PVC cable for easy installation. They are suitable for a wide range of temperatures, from -25°C to +70°C, and are resistant to shocks and vibrations as per IEC standards. Additionally, the sensors are CE and cULus listed, ensuring compliance with international safety and quality standards. Optional ATEX models are available upon request for specialized applications.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Radial 90°
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 70g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
