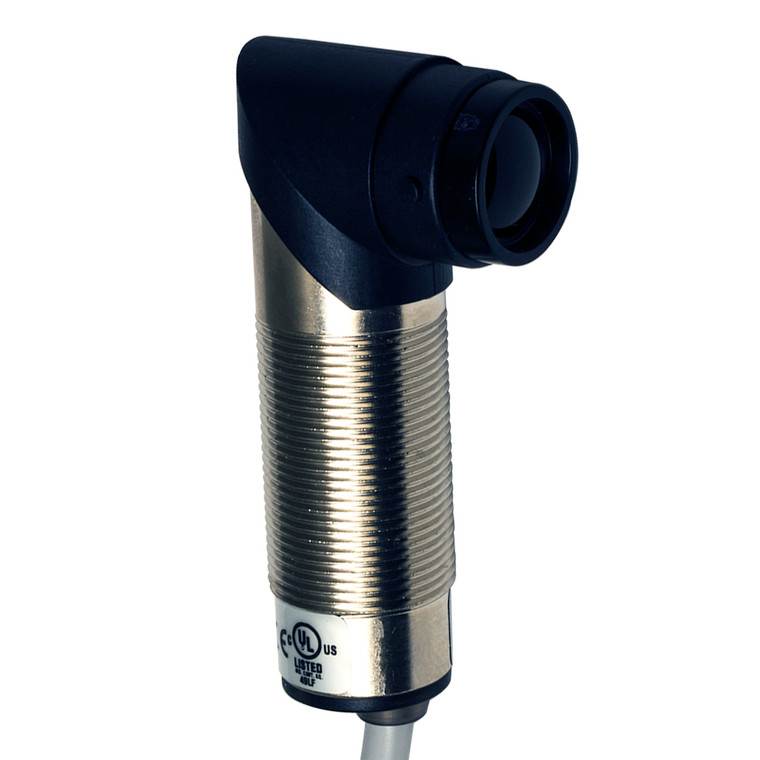

The Datasensing SPZ/0P-1A Sensors are high-performance photoelectric sensor receivers designed for precise and reliable detection tasks. With a nominal sensing distance of 14 meters, these sensors are equipped with a PNP L/D selectable output and a 2-meter axial cable for versatile installation. The M18 receiver features a radial 90° optic position, ensuring optimal alignment and detection accuracy.
Engineered for durability, the sensors boast an IP67 protection degree, safeguarding against dust and water ingress, and are approved by CE and cULus standards. They are equipped with LED status indicators for easy monitoring and offer complete protection against electrical damages, including short-circuit and reverse polarity protection.
The sensors operate efficiently within a voltage range of 10 to 30VDC, with a low no-load supply current of ?30mA and a load current capacity of ?100mA. They are designed to withstand harsh environments, with an operating temperature range of -25°C to +70°C, and are resistant to shocks and vibrations as per IEC standards.
Constructed with a robust nickel-plated brass housing and a PMMA active head, the sensors are built to last. They come with supplied accessories, including M18 x 1 nuts, for easy installation. Ideal for industrial applications, the Datasensing SPZ/0P-1A Sensors provide reliable performance with a high switching frequency of 250Hz and a quick response time of 2ms, making them a valuable addition to any automation system.
- Nominal sensing distance:
- 14m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Radial 90°
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
