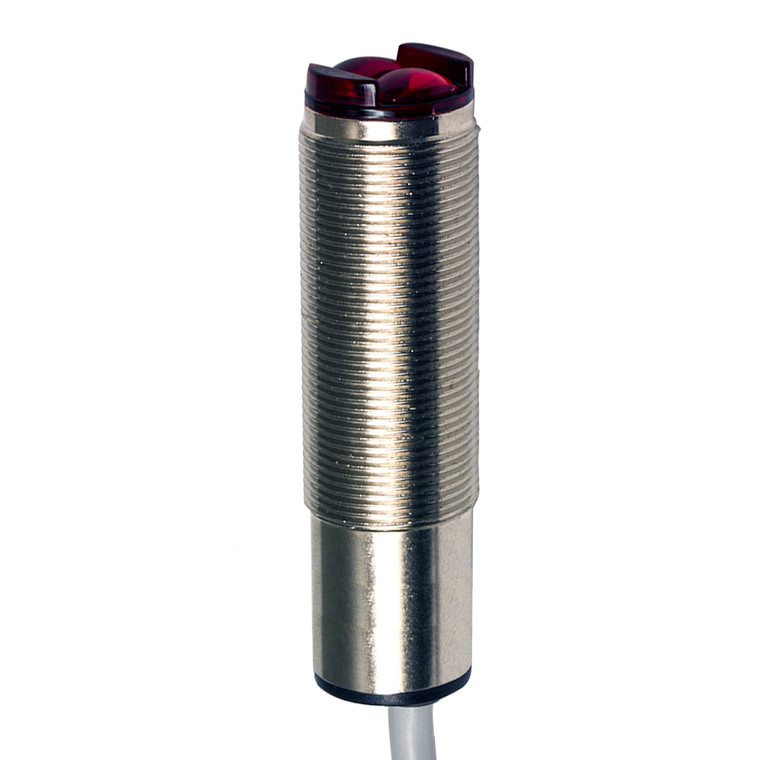

Datasensing SS1/0N-1A Sensors
Datasensing
$113.81
The Datasensing SS1/0N-1A Sensors are high-performance photoelectric sensors designed for precise detection with a nominal sensing distance of 100mm. Featuring a robust nickel-plated brass housing and IP67 protection, these sensors are built to withstand harsh environments. The axial optic position and blackground suppression function ensure accurate detection, even in challenging conditions. With a switching frequency of 1kHz and a response time of 500µs, these sensors provide rapid and reliable performance. The NPN L/D selectable output and LED status indicator offer flexibility and easy monitoring. Additionally, the sensors are equipped with comprehensive protection features, including short-circuit and reverse polarity protection, ensuring durability and safety. Ideal for industrial applications, the SS1/0N-1A Sensors are CE and cULus approved, guaranteeing compliance with international standards.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- minimum detectable object:
- 3,5mm
- Sensitivity adjustment:
- No
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
