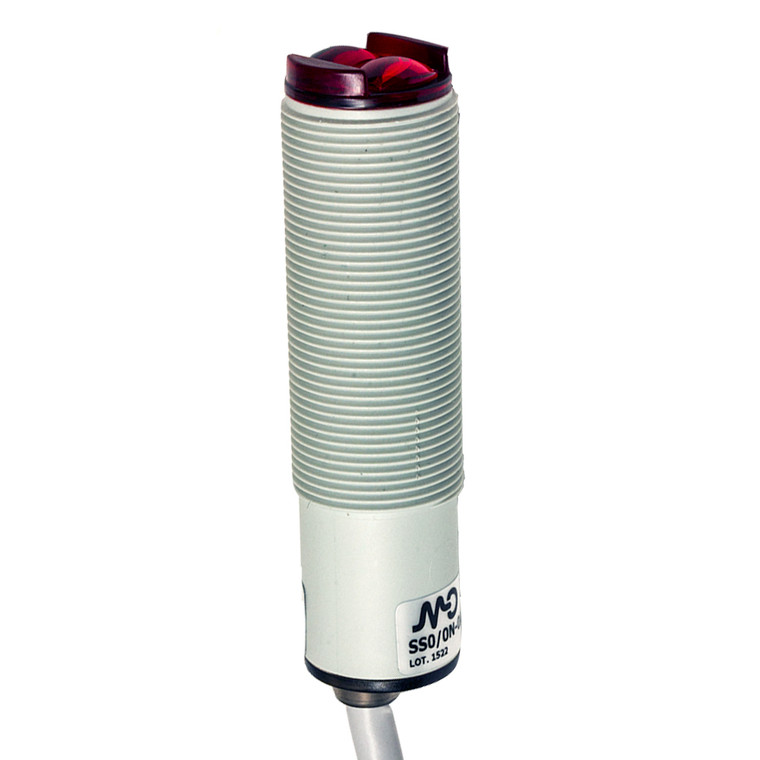

The Datasensing SS1/0P-0A84AN Photoelectric Sensor is designed for precision and reliability in industrial environments. With a nominal sensing distance of 100mm and a thermal drift of Sr ?10% Sr, this sensor ensures accurate detection with a repeat accuracy of 5%. It can detect objects as small as 3.5mm without the need for sensitivity adjustment, thanks to its background suppression function principle. The sensor features an axial optic position and a PNP L/D selectable output type, offering flexibility in various applications.
Operating at a voltage range of 10
30VDC, the sensor has a no-load supply current of ? 30mA and a load current of ?100mA, with a leakage current of ?10?A. It boasts a switching frequency of 1kHz and a response time of 500µs, making it suitable for high-speed operations. The sensor is equipped with yellow LED indicators for status output and offers short-circuit and reverse polarity protection for enhanced safety.
Constructed with a durable PBT/PC housing and a PMMA active head, the sensor is designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and mechanical protection rated at IP67. It is resistant to shocks and vibrations as per IEC standards and is approved with CE cULus Ex certifications for use in hazardous environments.
The sensor comes with a 3m PVC cable for easy installation and includes M18 x 1 nuts as supplied accessories. With its compact dimensions of M18 x 1/L=63.9mm, the Datasensing SS1/0P-0A84AN is an ideal choice for applications requiring reliable and precise photoelectric sensing.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- minimum detectable object:
- 3,5mm
- Sensitivity adjustment:
- No
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Housing Material:
- PBT / PC cable exit
- Connections:
- 3m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus Ex: II 3G Ex nA IIC T6 Gc II 3D Ex tc IIIB T85°C Dc
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Supplied Accessories:
- nuts M18 x 1
- Dimensions:
- M18 x 1/L=63,9mm
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
