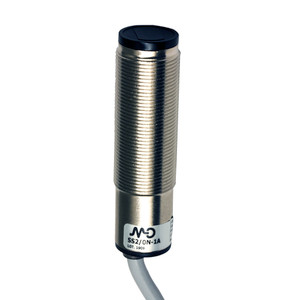

Datasensing SS2/0N-0A Sensors
Datasensing
$75.48
The Datasensing SS2/0N-0A Sensors are designed for precision and reliability in various industrial applications. Featuring a diffuse reflection function principle, these sensors offer a nominal sensing distance of 100mm, with a thermal drift of Sr at ?10% Sr and a repeat accuracy of 5%. The optic position is axial, and the output type is NPN L/D selectable, providing flexibility in output function. With a switching frequency of 250Hz and a response time of just 2ms, these sensors ensure quick and accurate detection.
Built to withstand harsh environments, the SS2/0N-0A Sensors come with an IP67 protection degree, safeguarding against dust and water ingress. They are equipped with LED status indicators for easy monitoring and offer complete protection against electrical damages, including short-circuit and reverse polarity protection. The sensors operate within a voltage range of 10
30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA.
Constructed with durable materials, the housing is made of PBT/PC with a PMMA active head, and the sensors are designed to endure operating temperatures from -25°C to +70°C. The sensors are CE and cULus listed, ensuring compliance with international safety standards. Additionally, they are compatible with ATEX models, category 3, available upon request, making them suitable for use in potentially explosive atmospheres.
The compact design, with dimensions of M18 x 1/L=63.9mm and a weight of 70g, allows for easy installation in tight spaces. The sensors come with a 2m PVC cable for convenient connectivity and are supplied with M18 x 1 nuts for secure mounting. With their robust construction and advanced features, the Datasensing SS2/0N-0A Sensors are an ideal choice for reliable and efficient sensing solutions.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 70g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
