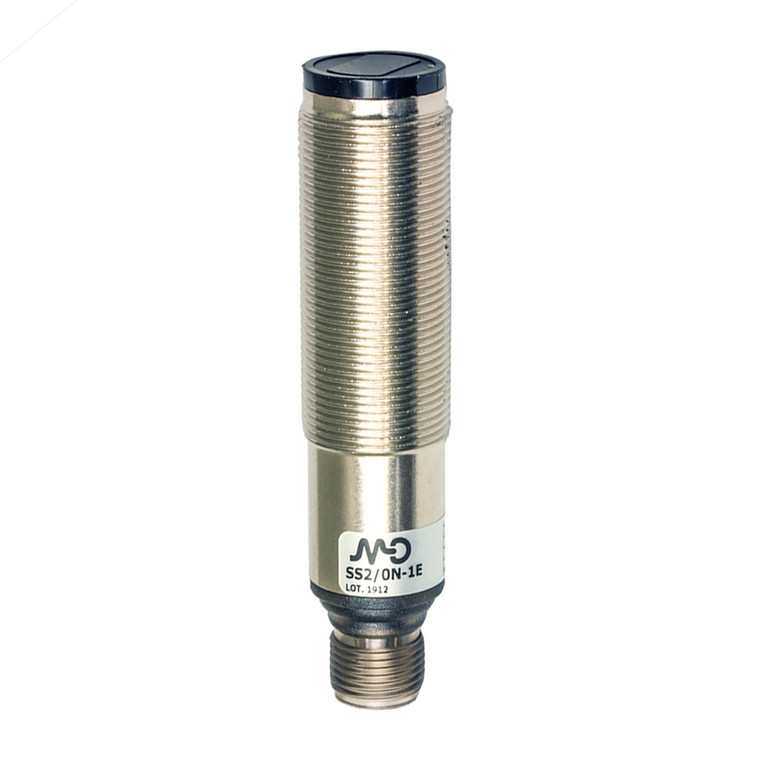

Datasensing SS2/0N-1E Sensors
Datasensing
$81.72
The Datasensing SS2/0N-1E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 100mm, these sensors are ideal for short-distance applications. The robust design includes a metal M12 connector and a nickel-plated brass housing, ensuring durability and protection against electrical damages with an IP67 protection degree.
Equipped with a selectable NPN L/D output, these sensors offer flexibility in various applications. The LED status indicator provides clear operational feedback, while the device's high switching frequency of 250Hz and quick response time of 2ms ensure efficient performance. The sensors are designed to withstand harsh environments, with an operating temperature range of -25°C to +70°C and protection against short-circuits, reverse polarity, and impulsive overvoltage.
The SS2/0N-1E models feature side sensitivity adjustment on axial and right-angle optics, with LO/DO selectable output. They are also available in ATEX models, category 3, upon request. The sensors are CE and cULus listed, ensuring compliance with international standards. With a compact design of M18 x 1 dimensions and a weight of 100g, these sensors are easy to install and integrate into existing systems. Supplied with M18 x 1 nuts, they are ready for immediate deployment in your industrial applications.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
