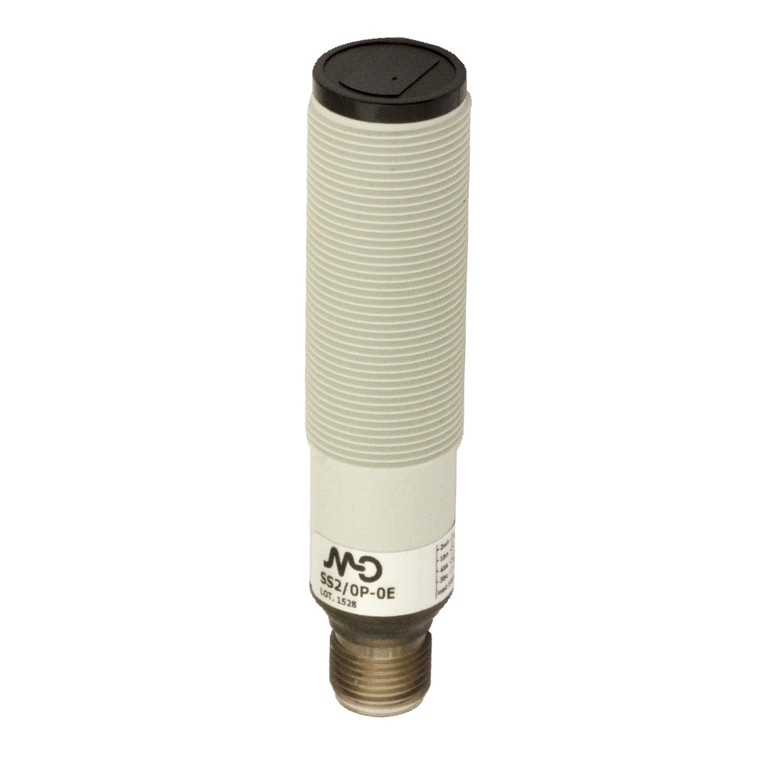

Datasensing SS2/0P-0E Sensors
Datasensing
$75.48
The Datasensing SS2/0P-0E Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection principle with a nominal sensing distance of 100mm, these sensors are ideal for short-distance applications. The models come with side sensitivity adjustment on both axial and right-angle optics, allowing for flexible installation. The output type is PNP with L/D selectable functionality, providing versatility in various applications.
These sensors are equipped with a yellow LED status indicator for easy monitoring and offer complete protection against electrical damages, including short-circuit and reverse polarity protection. With an IP67 protection degree, they are suitable for harsh environments. The sensors operate within a voltage range of 10 to 30VDC, with a low no-load supply current of ?30mA and a load current capacity of ?100mA.
The SS2/0P-0E Sensors are designed to withstand external light interference up to 3000lux from incandescent lamps and 10000lux from sunlight, ensuring reliable performance in diverse lighting conditions. They are housed in a durable PBT/PC plug with an active head made of PMMA, and they come with M12 plug connections for easy integration.
With approvals from CE and cULus, these sensors meet high safety and quality standards. They are also compatible with ATEX models, category 3, available upon request. The sensors are built to endure operating temperatures ranging from -25°C to +70°C without freezing, and they include supplied accessories such as M18 x 1 nuts for secure mounting.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
