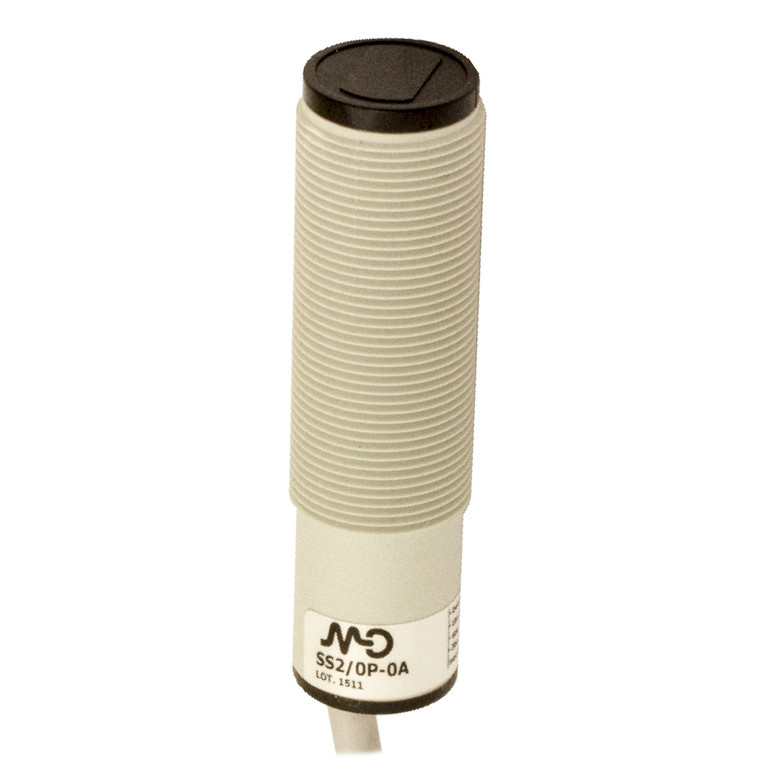

Datasensing SS2/LP-0A Sensors
Datasensing
$75.48
The Datasensing SS2/LP-0A Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 100mm, these sensors are ideal for short-distance applications. The sensors come equipped with a PNP Lon output type and a 2-meter axial plastic cable for easy installation. With a robust IP67 protection rating, they are safeguarded against electrical damages and are suitable for use in harsh environments. The sensors include a yellow LED status indicator for easy monitoring and offer complete protection with features like short-circuit and reverse polarity protection. They operate efficiently within a voltage range of 10 to 30VDC and have a fast response time of 2ms, making them suitable for high-speed applications. The housing is made from durable PBT/PC material, and the active head is constructed from PMMA, ensuring longevity and reliability. Additionally, the sensors are CE and cULus listed, meeting international safety and performance standards. Optional ATEX models are available upon request for environments requiring explosion protection.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP Lon
- Output Function:
- Lon
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 70g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
