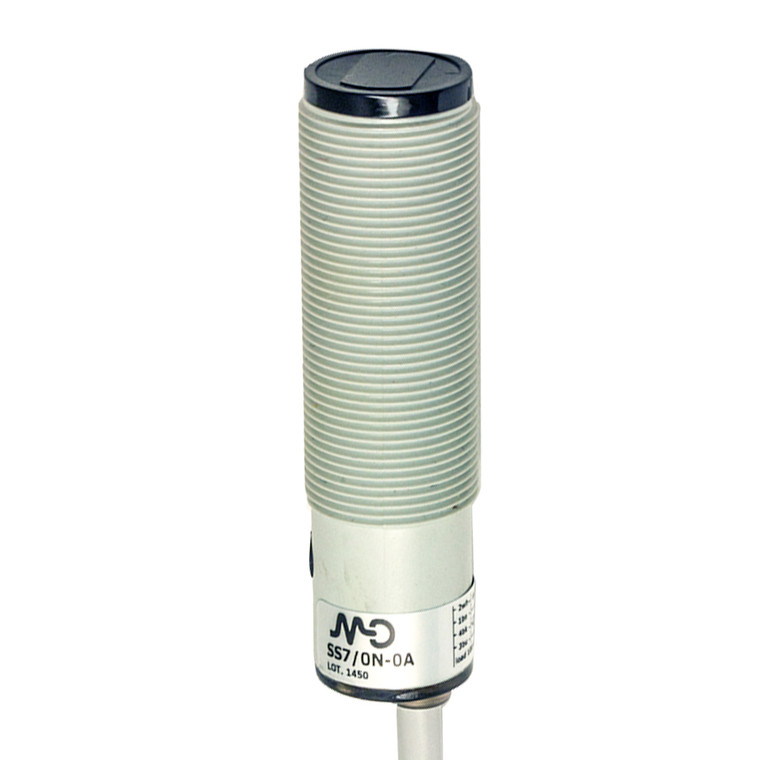

Datasensing SS7/0N-0A Sensors
Datasensing
$92.63
The Datasensing SS7/0N-0A Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 400mm, these sensors are ideal for medium-distance applications. The models come with side sensitivity adjustment on both axial and right-angle optics, allowing for flexible installation and operation. The output type is NPN with L/D selectable functionality, providing versatility in various environments.
Equipped with a robust IP67 protection degree, these sensors are safeguarded against electrical damages and are suitable for use in harsh conditions. The LED status indicator ensures easy monitoring, while the short-circuit and reverse polarity protection enhance operational safety. With a switching frequency of 250Hz and a response time of just 2ms, the SS7/0N-0A Sensors deliver fast and accurate performance.
Constructed with durable PBT/PC housing and a PMMA active head, these sensors are built to withstand shocks and vibrations as per IEC standards. The 2m PVC cable connection ensures easy integration into existing systems. Operating efficiently within a voltage range of 10
30VDC, these sensors maintain a low no-load supply current of ?30mA and a load current of ?100mA.
The Datasensing SS7/0N-0A Sensors are CE and cULus listed, meeting high standards of quality and safety. Optional ATEX models, category 3, are available upon request for specialized applications. With complete protection against impulsive overvoltage and interference from external light sources, these sensors are a reliable choice for industrial automation needs.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 70g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
