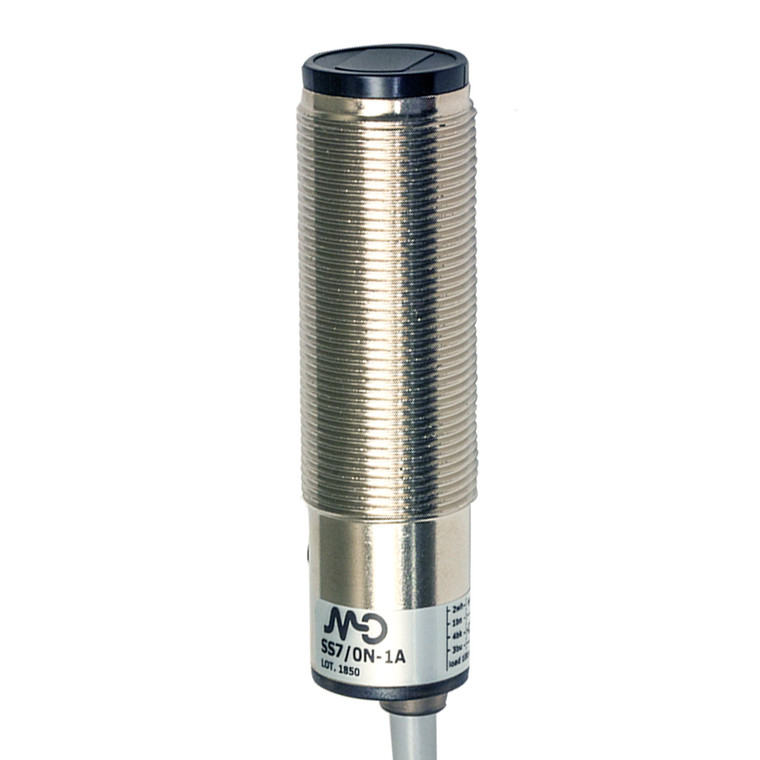

Datasensing SS7/0N-1A Sensors
Datasensing
$98.85
The Datasensing SS7/0N-1A Sensors are designed for precision and reliability in various industrial applications. Featuring a nominal sensing distance of 400mm, these sensors utilize a diffuse reflection principle for medium distance detection up to 600mm. The models come with side sensitivity adjustment on both axial and right-angle optics, allowing for flexible installation and operation. With a selectable LO/DO output and a robust IP67 protection rating, these sensors are built to withstand harsh environments. They are equipped with LED status indicators for easy monitoring and offer complete protection against electrical damages, including short-circuit and reverse polarity protection. The sensors operate within a voltage range of 10
30VDC and have a fast response time of 2ms, making them suitable for high-speed applications. Constructed with a durable nickel-plated brass housing and PMMA active head material, they are designed to endure shocks and vibrations as per IEC standards. The sensors are CE and cULus approved, ensuring compliance with international safety standards. Additionally, ATEX models for category 3 environments are available upon request. Supplied with M18 x 1 nuts and a screwdriver, these sensors are ready for immediate integration into your system.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
