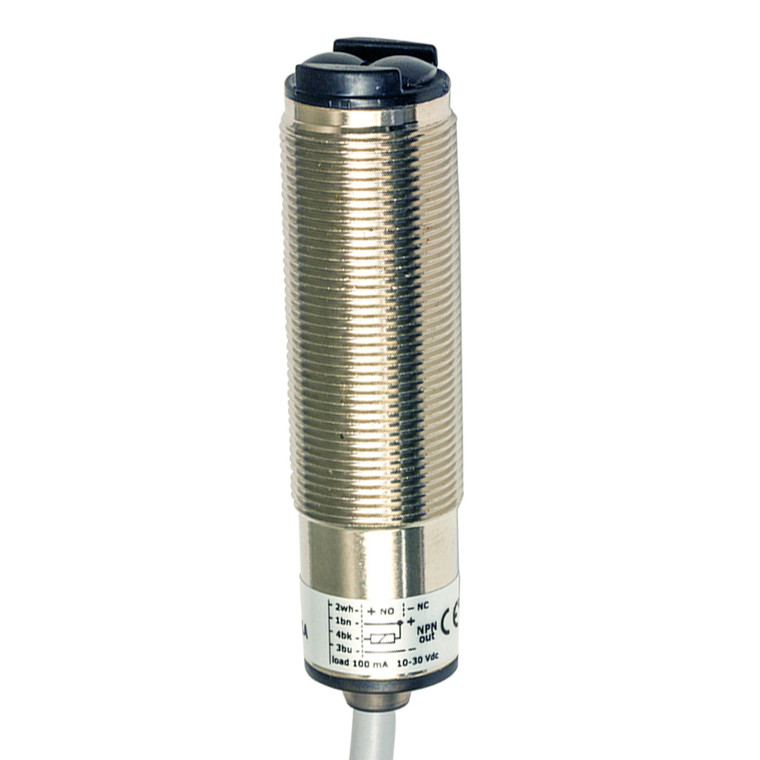

Datasensing SSC/0N-1A Sensors
Datasensing
$90.01
The Datasensing SSC/0N-1A Sensors are high-performance photoelectric sensors designed for reliable and precise detection. Featuring a retroreflective function with a nominal sensing distance of 5 meters, these sensors are equipped with an NPN L/D selectable output and a 2-meter axial cable for versatile installation. The sensors boast a robust IP67 protection degree, ensuring complete protection against electrical damages and harsh environmental conditions. With a switching frequency of 250Hz and a rapid response time of 2ms, they are ideal for fast-paced industrial applications. The LED status indicator provides clear operational feedback, while the short-circuit and reverse polarity protection enhance safety and reliability. Constructed with a durable nickel-plated brass housing and PMMA active head material, these sensors are built to withstand shocks and vibrations, complying with IEC standards. The SSC/0N-1A models are CE and cULus listed, with ATEX category 3 models available upon request, making them suitable for a wide range of industrial environments.
- Nominal sensing distance:
- 5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Retroreflective
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
