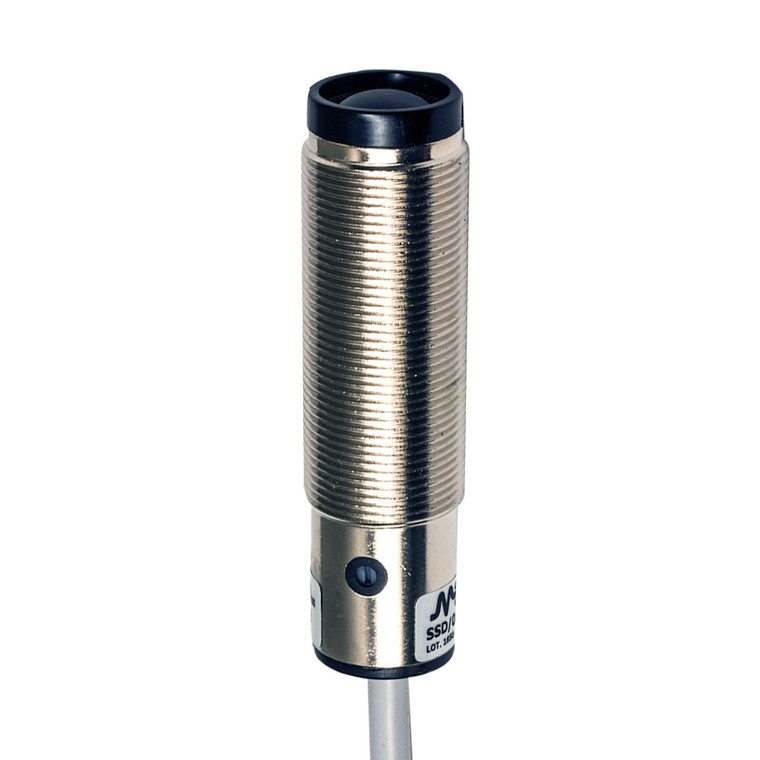

Datasensing SSD/0N-1A Sensors
Datasensing
$88.82
The Datasensing SSD/0N-1A Sensors are high-performance photoelectric sensors designed for precise detection tasks. Featuring a robust M18 receiver with a nominal sensing distance of 14 meters, these sensors offer adjustable sensitivity via a trimmer for optimal performance. The NPN L/D selectable output ensures versatile application compatibility, while the axial optic position enhances detection accuracy. Built with a durable nickel-plated brass housing and a 2-meter metal cable, these sensors are engineered to withstand harsh environments, boasting an IP67 protection rating.
Equipped with LED status indicators, the SSD/0N-1A Sensors provide clear operational feedback. They are designed to operate efficiently within a wide voltage range of 10 to 30VDC, with a low no-load supply current of ?30mA. The sensors feature a high switching frequency of 250Hz and a rapid response time of 2ms, making them ideal for fast-paced industrial applications.
Safety and reliability are prioritized with built-in short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. The sensors are also resistant to external light interference, withstanding up to 5000 lux from incandescent lamps and 10000 lux from sunlight.
Approved by CE and cULus, and compliant with EMC standards EN 60947-5-2, these sensors are suitable for a wide range of industrial applications. The package includes M18 x 1 nuts and a screwdriver for easy installation. With a compact design and a weight of 130g, the Datasensing SSD/0N-1A Sensors are a reliable choice for demanding sensing applications.
- Nominal sensing distance:
- 14m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
