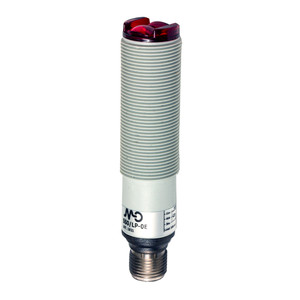

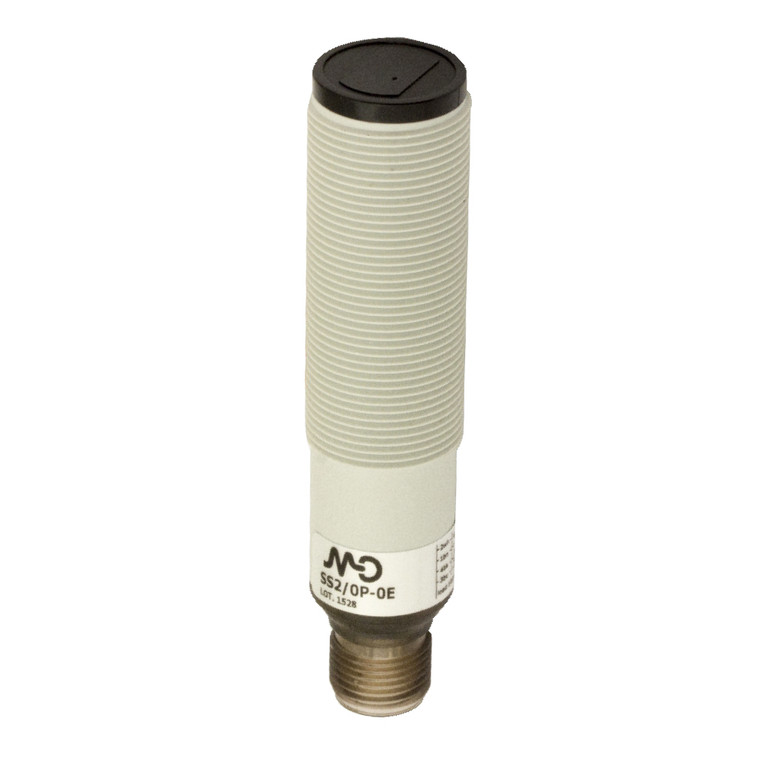

Datasensing SSD/0P-0E Sensors
Datasensing
$82.59
The Datasensing SSD/0P-0E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a robust M18 receiver with a nominal sensing distance of 14 meters, these sensors offer adjustable sensitivity via a trimmer, ensuring optimal performance in various applications. The PNP L/D selectable output and axial optic position provide flexibility, while the LED status indicator offers clear operational feedback. Built to withstand harsh environments, these sensors boast an IP67 protection degree, complete protection against electrical damages, and approvals from CE and cULus. With a switching frequency of 250Hz and a rapid response time of 2ms, they are ideal for high-speed operations. The sensors are equipped with short-circuit and reverse polarity protection, ensuring durability and safety. Constructed with a PBT housing and PMMA active head, they are lightweight yet sturdy, withstanding temperatures from -25°C to +70°C. The M12 plug connection and supplied accessories, including M18 nuts and a screwdriver, facilitate easy installation. Additionally, ATEX models for category 3 environments are available upon request, making these sensors versatile for various industrial needs.
- Nominal sensing distance:
- 14m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 30g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
