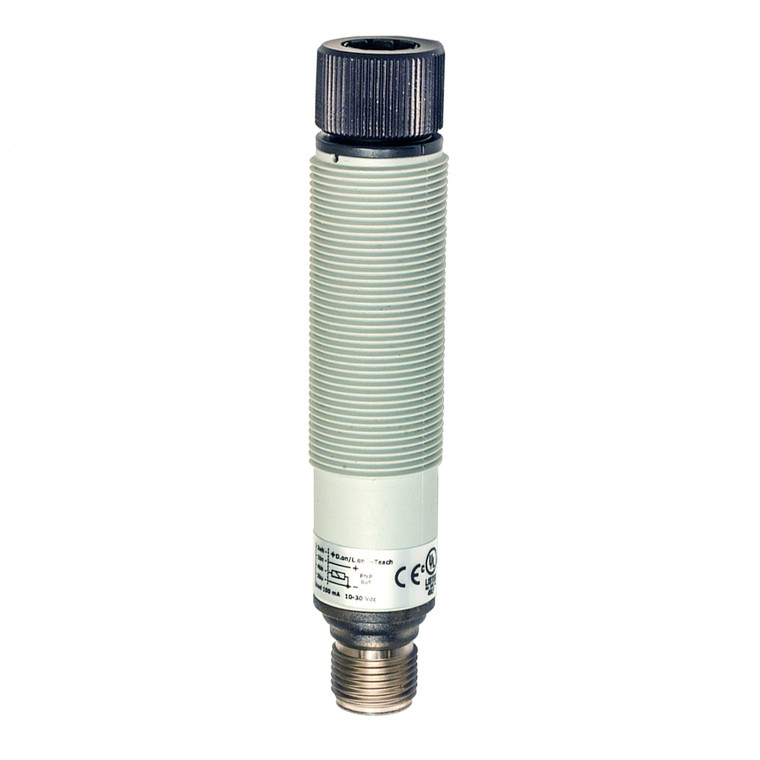

Datasensing SSF/0N-0E Sensors
Datasensing
$121.08
The Datasensing SSF/0N-0E Sensors are advanced optical fibre amplifiers designed for precision and reliability in various industrial applications. Featuring a compact M18 design, these sensors offer a versatile range of optical fibres, allowing for customizable nominal sensing distances. The teach-in button enables easy sensitivity adjustment, ensuring optimal performance tailored to your specific needs.
Equipped with a robust NPN L/D selectable output, these sensors operate efficiently within a 10
30VDC range, with a high switching frequency of 800Hz and a rapid response time of 625µs. The LED status indicator provides clear output status visibility, while comprehensive protection features, including short-circuit and reverse polarity protection, safeguard against electrical damages.
Constructed with durable PBT/PC housing and an IP67 degree of protection, the SSF/0N-0E Sensors are built to withstand harsh environments, operating reliably in temperatures ranging from -25°C to +70°C. The M12 plug connection ensures secure and straightforward installation, complemented by supplied M18 x 1 nuts for added convenience.
With approvals from CE and cULus, these sensors meet stringent safety and performance standards, making them a dependable choice for your sensing needs. Whether dealing with interference from external light sources or requiring impulsive overvoltage protection, the Datasensing SSF/0N-0E Sensors deliver exceptional performance and reliability.
- Nominal sensing distance:
- Depending on optical fibres used
- Thermal drift of Sr:
- 10 % Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Optic fiber amplifier
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 800Hz
- Response time:
- 625µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?100mA
- Leakage current:
- ? 10 µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (output status)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 30 g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- Depending on optical fibres
- Tightening torque:
- 1Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Mechanical Protection:
- IP67
