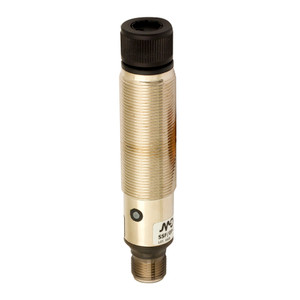

Datasensing SSF/0P-0E Sensors
Datasensing
$121.08
The Datasensing SSF/0P-0E Sensors are advanced optical fibre amplifiers designed for precision and reliability in various industrial applications. Featuring a compact M18 design, these sensors operate on a 10...30VDC power supply and offer a PNP L/D selectable output. The sensitivity can be easily adjusted using the teach-in button, ensuring optimal performance tailored to your specific needs. With a high switching frequency of 800Hz and a rapid response time of 625µs, these sensors are ideal for fast-paced environments.
The robust construction includes a PBT/PC plug housing and an M12 connection, providing durability and ease of installation. The sensors are equipped with LED status indicators for clear output status visibility and are protected against electrical damages, including short-circuit and reverse polarity protection. They are also designed to withstand external light interference up to 10,000 lux from sunlight and 3,000 lux from incandescent lamps.
With approvals from CE and cULus, these sensors meet high safety and quality standards. The IP67 degree of protection ensures reliable operation in harsh conditions, with an operating temperature range of -25°C to +70°C. The package includes M18 x 1 nuts for secure mounting. Whether for automation, manufacturing, or other industrial applications, the Datasensing SSF/0P-0E Sensors deliver exceptional performance and reliability.
- Nominal sensing distance:
- Depending on optical fibres used
- Thermal drift of Sr:
- 10 % Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Teach-in
- Function Principle:
- Optic fiber amplifier
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 800Hz
- Response time:
- 625µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?100mA
- Leakage current:
- ? 10 µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (output status)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 30 g
- Housing Material:
- PBT / PC plug
- Connections:
- M12 plug
- Active Head Material:
- Depending on optical fibres
- Tightening torque:
- 1Nm
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Mechanical Protection:
- IP67
