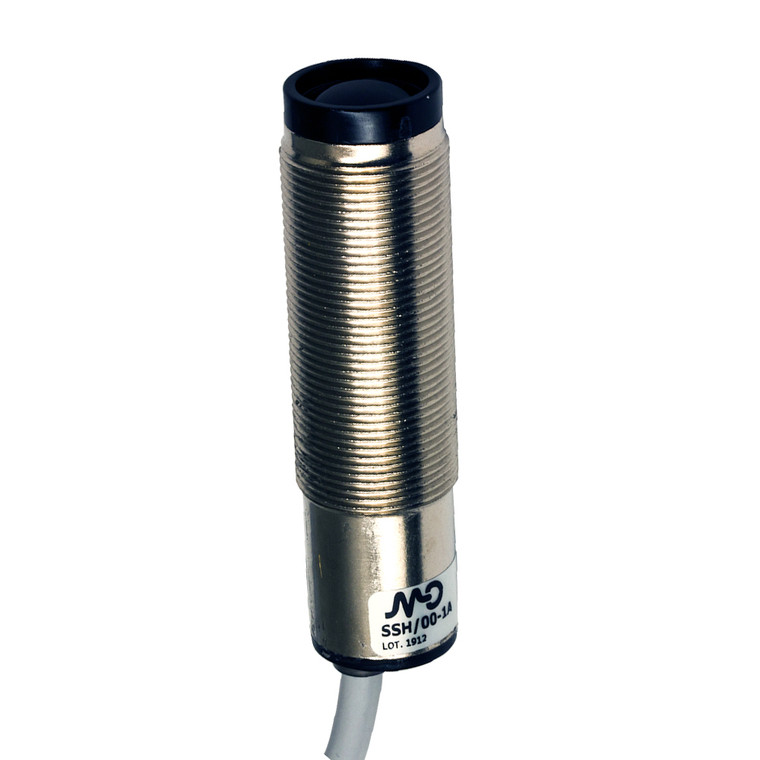

Datasensing SSH/X0-1A Sensors

The Datasensing SSH/X0-1A Sensors are advanced photoelectric sensors designed for precise and reliable detection. With a nominal sensing distance of 14 meters, these sensors feature an emitter function principle and an axial optic position, ensuring accurate performance in various applications. The sensors are equipped with a 2-meter metal cable and offer side sensitivity adjustment on both axial and right-angle optics. The SSH/X0-1A models come with LO/DO selectable output and are available in ATEX category 3 upon request, making them suitable for hazardous environments. They are built with complete protection against electrical damages, including reverse polarity and impulsive overvoltage protection. The LED status indicator provides clear visibility of the sensor's operational status, with a yellow LED indicating power ON. Constructed with a robust nickel-plated brass housing and PMMA active head material, these sensors are designed to withstand harsh conditions, offering an IP67 protection degree. They operate efficiently within a temperature range of -25°C to +70°C, without freezing, and are resistant to shocks and vibrations as per IEC standards. The sensors are CE and cULus listed, ensuring compliance with international safety standards. They are powered by a 10-30VDC operating voltage, with a no-load supply current of ? 40mA and a maximum ripple content of ?10%. The SSH/X0-1A Sensors are supplied with M18 x 1 nuts for easy installation and have a tightening torque of 25Nm. Ideal for industrial applications, these sensors provide reliable performance and durability.
