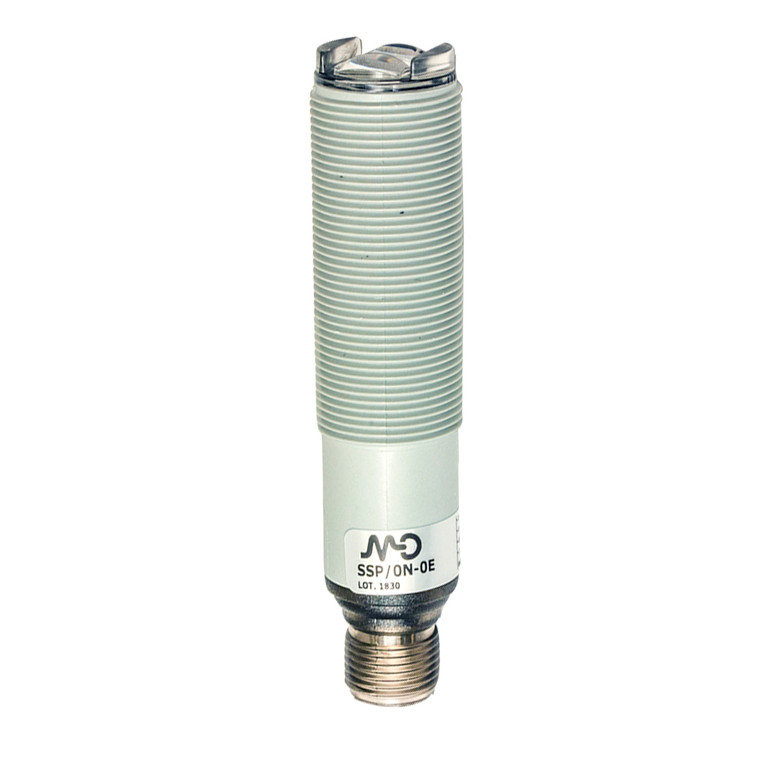

Datasensing SSP/0P-0E3X Sensors

The Datasensing SSP/0P-0E3X Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a polarized function principle, these sensors offer a nominal sensing distance of 4 meters with a repeat accuracy of 5%. The sensitivity can be easily adjusted using a trimmer, ensuring optimal performance in various applications. With a robust M18 housing made from PBT and PC plug materials, these sensors are built to withstand harsh environments, offering mechanical protection rated at IP67. Equipped with a PNP L/D selectable output type, the SSP/0P-0E3X sensors provide a switching frequency of 250Hz and a rapid response time of 2ms. They operate efficiently within a voltage range of 10 to 30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. The sensors are designed with safety in mind, featuring short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. The optic position is axial, and the sensors are compatible with the RL110 reflector. They are equipped with LED indicators for status output, and their emission is LED Red at 660nm. The sensors are resistant to external light interference, withstanding up to 3000lux from incandescent lamps and 10000lux from sunlight. The SSP/0P-0E3X sensors come with supplied accessories, including M18 x 1 nuts and a screwdriver, and are approved by CE and cULus standards. They are EMC compatible with EN 60947-5-2 and have been tested for shocks and vibrations according to IEC standards. With an operating temperature range of -25°C to +70°C, these sensors are ideal for a wide range of industrial applications.
