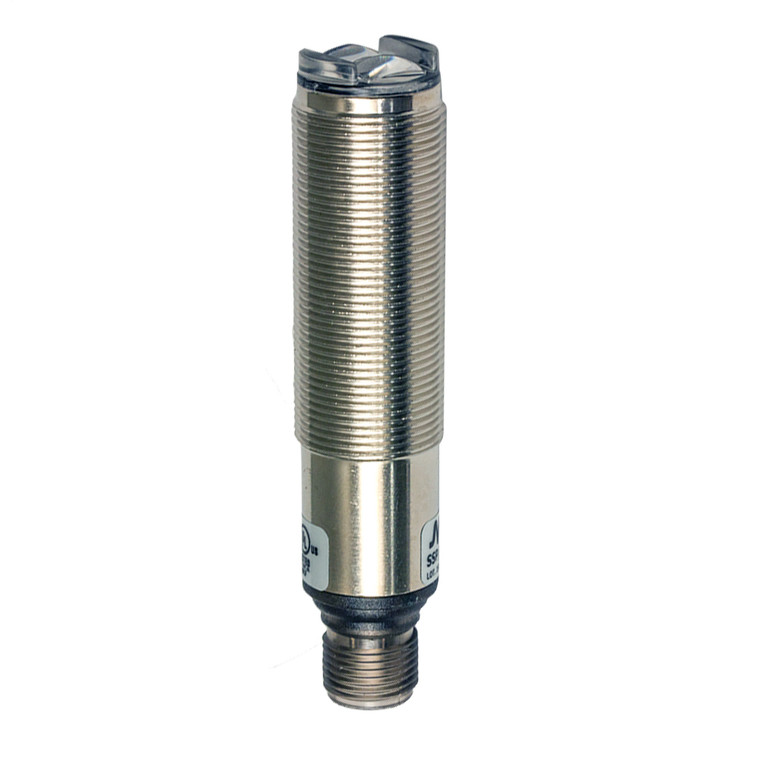

Datasensing SSP/0P-1E Sensors
Datasensing
$96.81
The Datasensing SSP/0P-1E Sensors are designed for precision and reliability in various industrial applications. Featuring a polarized function principle, these sensors offer a nominal sensing distance of 4 meters with a thermal drift of Sr at ?10% Sr and a repeat accuracy of 5%. The models come with side sensitivity adjustment on axial and right-angle optics, ensuring flexibility in installation. The output type is PNP L/D selectable, with a switching frequency of 250Hz and a response time of just 2ms, making them highly responsive.
These sensors are built to withstand harsh environments, with an IP67 protection degree and complete protection against electrical damages, including short-circuit and reverse polarity protection. They are also equipped with LED status indicators for easy monitoring. The housing is made of durable nickel-plated brass with a PC plug, and the active head is constructed from PMMA, ensuring longevity and resilience.
The sensors operate within a voltage range of 10
30VDC, with a no-load supply current of ?30mA and a load current of ?100mA. They are designed to handle impulsive overvoltage and have a low output voltage drop of ?1.2V at Iload=100mA. With EMC compatibility to EN 60947-5-2 standards and approvals from CE and cULus, these sensors are a reliable choice for demanding applications. Supplied with M18 x 1 nuts, they are easy to install and maintain, making them an ideal solution for your sensing needs.
- Nominal sensing distance:
- 4m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 100g
- Housing Material:
- Nickel plated brass / PC plug
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
