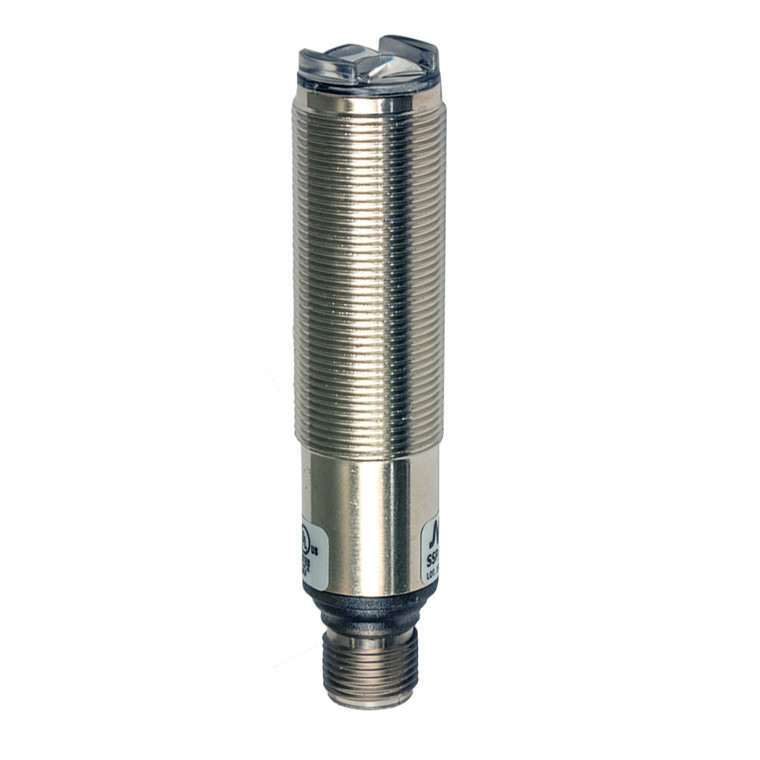

Datasensing SSP/0P-1E3X Sensors

The Datasensing SSP/0P-1E3X Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a polarized function principle, these sensors offer a nominal sensing distance of 4 meters with a repeat accuracy of 5%. The sensitivity can be easily adjusted using a trimmer, and the optic position is axial for optimal performance. With a robust nickel-plated brass housing and PMMA active head material, these sensors are built to withstand harsh environments, offering mechanical protection rated at IP67. The sensors operate on a voltage range of 10 to 30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. They feature a PNP L/D selectable output type, with a switching frequency of 250Hz and a response time of just 2ms. The output voltage drop is minimal at ?1.2V@Iload=100mA, ensuring efficient operation. Additionally, they are equipped with LED indicators for status output and offer short-circuit and reverse polarity protection. Designed to handle external light interference up to 3000lux from incandescent lamps and 10000lux from sunlight, these sensors are highly reliable in various lighting conditions. They come with an M12 plug connection and are supplied with M18 x 1 nuts and a screwdriver for easy installation. The sensors are CE cULus approved and comply with EMC compatibility standards EN 60947-5-2, ensuring they meet high safety and performance standards. With an operating temperature range of -25°C to +70°C, these sensors are ideal for a wide range of industrial applications.
