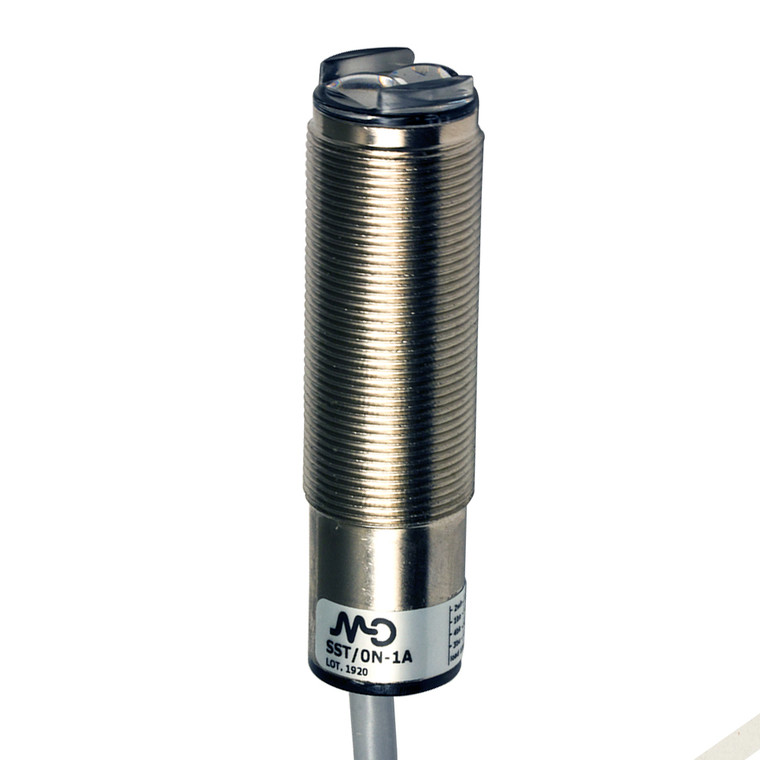

Datasensing SST/0P-1A Sensors
Datasensing
$151.93
The Datasensing SST/0P-1A Sensors are advanced photoelectric sensors designed for precise detection with a nominal sensing distance of 12 to 25mm. Featuring a robust nickel-plated brass housing and PMMA active head, these sensors are built to withstand harsh environments with an IP67 protection rating. The sensors offer a blackground suppression function principle, ensuring accurate detection even in challenging conditions. With a switching frequency of 1kHz and a rapid response time of 500µs, they are ideal for high-speed applications. The sensors are equipped with a PNP L/D selectable output and a yellow LED status indicator for easy monitoring. They are protected against electrical damages, including short-circuit and reverse polarity protection, and can operate in temperatures ranging from -25°C to +70°C. The 2m PVC cable connection and compact dimensions (M18 x 1/L=63.9mm) make installation straightforward. Additionally, the sensors are CE and cULus listed, ensuring compliance with international standards.
- Nominal sensing distance:
- 12, 25mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- minimum detectable object:
- 0,1mm
- Sensitivity adjustment:
- No
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
