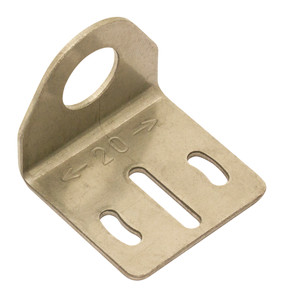

The Datasensing ST 12-A Sensors are designed for precision and reliability in industrial applications. Featuring a bracket M12 axial design, these inductive proximity sensors offer a standard flush mount with a nominal sensing distance of 2mm and an operating distance of 0
1.62mm. They are equipped with a 2m PVC cable and support both NPN and PNP output types with NO/NC output functions. The sensors are capable of a switching frequency of 1kHz and a response time of 0.5ms, ensuring quick and accurate detection.
Constructed with a nickel-plated brass housing and an LCP active head, these sensors are built to withstand harsh environments, with an operating temperature range of -25°C to +70°C and IP67 mechanical protection. They are shielded for flush mounting and come with short-circuit and reverse polarity protection, as well as protection against inductive loads. The sensors are certified by CE, cULus, ECOLAB, and DIVERSEY, making them suitable for use with industrial detergents.
With a compact design of Ø12x59mm and supplied with two M12x1 nuts, the Datasensing ST 12-A Sensors are easy to install and integrate into existing systems. The yellow LED indicator provides a clear output state, and the sensors feature a low no-load supply current of ? 10mA and a load current capacity of 200mA. Ideal for applications requiring precise proximity detection, these sensors offer reliable performance and durability.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,2 0,5 / aluminium: 0,3 0,5 / brass: 0,4 0,6 / stainelss steel: 0,7 0,9
- Repeat Accuracy:
- < 3% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- < 10%
- Description:
- M12 standard flush mount
- Functions:
- Proximity
- Output type:
- NPN/PNP
- Output Function:
- NO/NC
- Switching frequency:
- 1kHz
- Response time:
- 0,5
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 10mA
- Load current:
- 200mA
- Output voltage drop:
- ? 1,8V @100mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- ?100kHz
- Protection against inductive loads:
- Yes
- Mounting:
- Shielded
- Dimensions:
- Ø12x59
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- LCP
- Tightening torque:
- 6Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus ECOLAB DIVERSEY
- Supplied Accessories:
- 2 nuts M12x1
- Dimensions:
- Ø12 / L = 59mm
- Operating Temperature:
- -25°C +70°C
- Mechanical Protection:
- IP67
