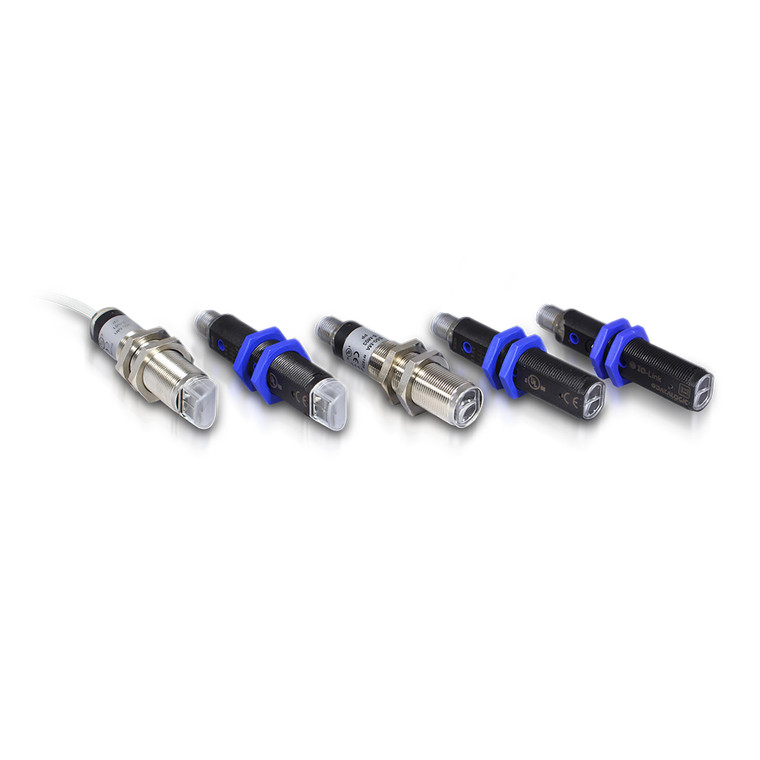

Datasensing ST 202 4 2 long L brackets for LP
Datasensing
$65.92
The Datasensing ST 202 4 is a high-performance photoelectric sensor designed for precision and reliability. Featuring a tubular M18 design with axial optics, this sensor is equipped with a red LED emission and a trimmer for sensitivity adjustment, making it ideal for applications requiring optic fiber amplification. It boasts a nominal sensing distance of 30/100mm and operates on a voltage range of 10 to 30VDC. The sensor offers both PNP NO+NC output functions, with a switching frequency of 1kHz and a rapid response time of 500µs.
Constructed with a robust metal housing made of nickel-plated brass, the ST 202 4 ensures durability and resistance to harsh environments, with an IP67 mechanical protection rating. It is designed to withstand shocks and vibrations, adhering to EN60068-2-6 standards, and offers improved EMI and ambient light immunity. The sensor includes short-circuit and reverse polarity protection, as well as impulsive overvoltage protection, ensuring reliable operation in various industrial settings.
The device is equipped with yellow OUTPUT and green STABILITY LED indicators for easy status monitoring. It also features IO-Link connectivity V1.1 with a double channel for enhanced communication capabilities. The ST 202 4 is compatible with M12 pigtail models and comes with supplied accessories, including M18 x 1 nuts for secure mounting. With CE and cULus approvals, this sensor meets high safety and performance standards, making it a versatile choice for a wide range of applications.
- Nominal sensing distance:
- 30/100mm
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Optic fiber amplifier
- Notes:
- white target Kodak 90% 100 x 100mm
- Description:
- Tubular M18 - axial optic
- Optic position:
- axial
- Functions:
- Optic fiber amplifier
- Output type:
- PNP NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 1kHz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35 mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- LED indicators:
- yellow OUTPUT LED, green STABILITY LED
- Short-circuit protection:
- YES
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- Dimensions:
- Ø18x73
- Housing Material:
- Metal - Nickel plated brass
- Connections:
- 2m cable
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Supplied Accessories:
- nuts M18 x 1
- Dimensions:
- M18x73
- Operating Temperature:
- - 25°C + 55°C (Without freeze)
- Mechanical Protection:
- IP67
