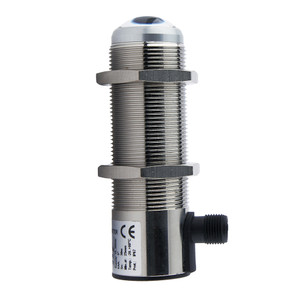

Datasensing TH6/R-KIA Sensors
Datasensing
$258.95
The Datasensing TH6/R-KIA Sensors are advanced safety sensor receivers designed for high-performance industrial applications. With a nominal sensing distance of 60 meters, these M30 Type 4 safety photocell receivers are ideal for ensuring safety in complex environments. They feature a robust metal housing with an M12 90° connector, making them durable and easy to integrate into existing systems. The sensors are compliant with EN50100 Category 2 and Category 4 standards, ensuring top-tier safety performance.
Equipped with LED indicators for alignment, these sensors offer a reliable and user-friendly experience. The sensors operate on a voltage range of 10 to 30 Vdc, with a no-load supply current of ? 25mA and a load current of ? 70mA. They are designed to work seamlessly with the SBCR03 control unit, providing a complete safety system that is EN ISO 13849 compliant.
The sensors boast a high degree of protection with an IP67 rating, making them suitable for harsh industrial environments. They can withstand operating temperatures from -20°C to +55°C and storage temperatures from -40°C to +75°C, with a humidity tolerance of 15% to 95%. The sensors are also approved by CE and TÜV, ensuring they meet international safety and quality standards.
With a response time of 200µs for light/dark transitions and 400µs for dark/light transitions, these sensors provide quick and accurate detection. The totem-pole output type ensures efficient connectivity, while the glass active head material enhances durability. Supplied with two nuts for easy installation, the Datasensing TH6/R-KIA Sensors are a reliable choice for any safety-critical application.
- Nominal sensing distance:
- 60m (ExG=2)
- Thermal drift of Sr:
- ? 10%
- Resolution:
- Single-beam
- controlled height:
- Single-beam
- Effective Aperture Angle:
- ? ±2,5°
- Effective Aperture Angle:
- Typical ±1,8°
- Function Principle:
- Receiver
- Control unit to be used:
- SBCR03
- Description:
- M30 Type 4 Safety Photocell Receiver
- Type:
- Type 4 safety photocell
- SIL:
- 3
- SILCL:
- 3
- PL:
- e
- PFHd:
- 8,10E-10
- MTTFd:
- 20 years
- Output type:
- Totem-pole
- Output Function:
- To be connectred to SBCR03
- Resposnse time for light/dark transition:
- 200µs
- Resposnse time for dark/light transition:
- 400µs
- Operating Voltage:
- 10 30 Vdc
- No-Load supply current:
- ? 25mA
- Load current:
- ? 70mA
- Output voltage drop:
- 2,5V @ 50mA
- Max ripple content:
- ? 5 Vpp
- LED indicators:
- Yellow (alignement)
- Housing Material:
- PBT
- Connections:
- M12 plug
- Active Head Material:
- Glass
- Operating temperature:
- -20°C +55°C
- Storage temperature:
- -40°C +75°C
- Approvals:
- CE, TÜV
- Shocks and vibrations:
- 10g - 16ms (according to IEC600068-2-29) 10Hz 55Hz - 1 oct/min - 0,35mm (according to 60068-2-6)
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 x nuts
- Operating Temperature:
- -20 +55°C (Without freeze)
- Mechanical Protection:
- IP67
