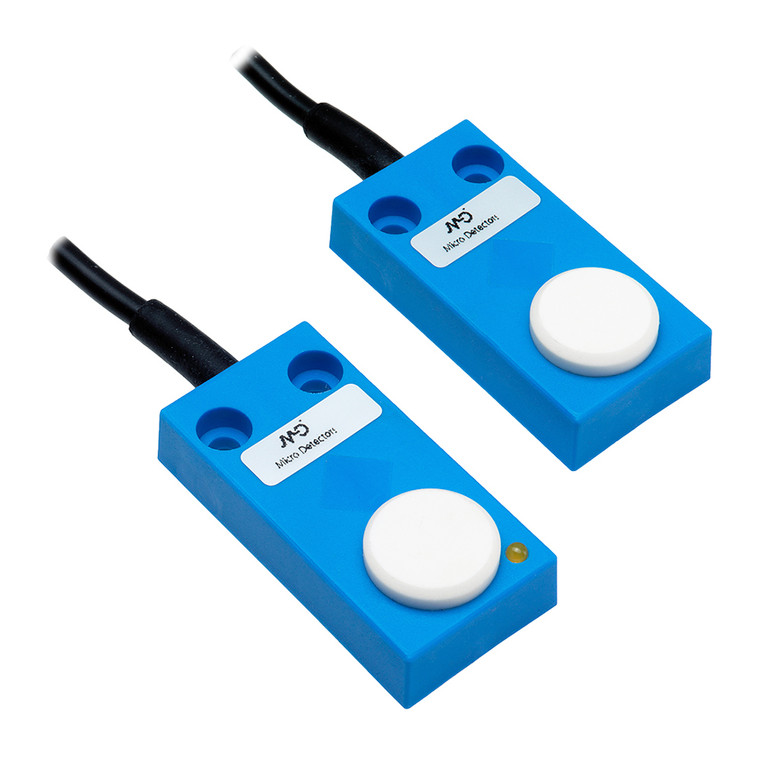

Datasensing UHS/AP-0A Sensors
Datasensing
$620.24
The Datasensing UHS/AP-0A Sensors are designed for precision and reliability, featuring a cubic ultrasonic sensor with an Emitter + Receiver function principle. With a nominal sensing distance of 1100mm and a beam angle of ±9°, these sensors ensure accurate detection in various applications. The device operates with a PNP NO output type and offers a switching frequency of 500Hz, providing a rapid response time of just 1ms.
Constructed with a durable plastic housing and an IP67 protection degree, the UHS/AP-0A is safeguarded against electric damages, making it suitable for harsh environments. It includes comprehensive protection features such as short-circuit, reverse polarity, and impulsive overvoltage protection. The sensor is equipped with a 2m PVC cable for easy installation and a yellow LED indicator for output status and alignment accuracy.
Operating within a voltage range of 19 - 30Vdc, the sensor supports a load current of 40mA and maintains a low leakage current of less than 10µA. The device is thermally compensated, ensuring consistent performance across a temperature range of -15°C to +60°C. With CE approvals and EMC compatibility per IEC 60947-5-2 standards, the UHS/AP-0A is a reliable choice for industrial automation and control systems.
- Nominal sensing distance:
- 1100mm
- Beam angle:
- ± 9°
- Sensitivity adjustment:
- No
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 0mm
- Function Principle:
- Emitter + Receiver
- Output type:
- PNP
- Output Function:
- NO
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 19 - 30Vdc
- Load current:
- 40mA
- Leakage current:
- < 10µA
- Output voltage drop:
- < 2,5V
- Max ripple content:
- < 10%
- LED indicators:
- Yellow LED (output active or incorrect alignment)
- Time delay before availability:
- < 200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 150g
- Housing Material:
- PBTP
- Connections:
- 2m PVC cable
- Active Head Material:
- ceramics
- Storage temperature:
- - 25°C + 75° C (without freeze)
- Transducer Frequency:
- 180KHz
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2 / 7.4
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
