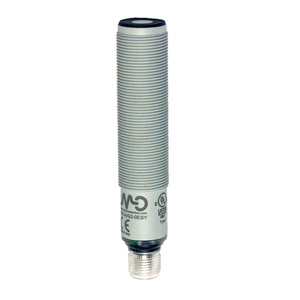

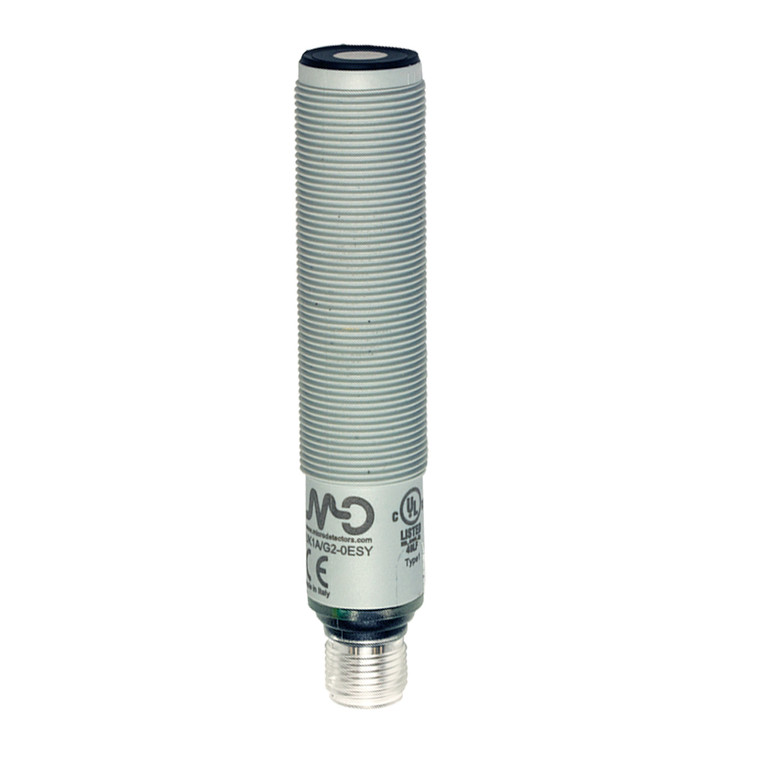

Datasensing UK1A/G6-0ESY Sensors
Datasensing
$348.11
The Datasensing UK1A/G6-0ESY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a nominal sensing distance of 400mm with a thermal drift of ±2% and a repeat accuracy of 0.50%. The beam angle is 10° ± 2°, ensuring accurate detection within a resolution of ?3mm. The sensors are equipped with a Teach-in button for easy sensitivity adjustment and an adjustable hysteresis function of 1%.
With a diffuse reflection function principle, the sensors provide both PNP and 4...20mA output types, supporting NO/NC and positive/negative slope output functions. They operate at a switching frequency of 10Hz and have a response time of 500ms. The operating voltage ranges from 10 to 30Vdc, with a no-load supply current of ?50mA and a load current of 100mA. The sensors are designed with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety.
The housing is made of robust PBT material, with dimensions of M18 x 1 / L = 91.6mm, and a weight of 70g. The sensors are equipped with an M12 plug connection and come with supplied accessories including 2 nuts M18x1 and 2 washers Ø 18. They are approved by CE cULus and comply with EMC compatibility standards IEC 60947-5-2. With an IP67 degree of protection, these sensors are built to withstand harsh environments, operating within a temperature range of -20°C to +70°C and storage temperatures of -35°C to +80°C without freezing. The multifunction LED indicators provide clear status updates, making these sensors an ideal choice for various industrial applications.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 50mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP + 4...20mA
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 10Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 70g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
