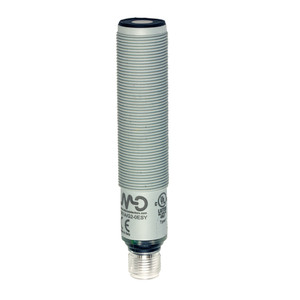

Datasensing UK1A/GN-0ESY Sensors
Datasensing
$281.81
The Datasensing UK1A/GN-0ESY Sensors are designed for precision and reliability in various industrial applications. These sensors feature a nominal sensing distance of 400mm and utilize a diffuse reflection function principle, ensuring accurate detection with a repeat accuracy of 0.50%. The sensors are equipped with a Teach-in button for easy sensitivity adjustment, allowing for quick setup and operation.
With a robust PBT housing and an IP67 degree of protection, these sensors are built to withstand harsh environments, operating efficiently within a temperature range of -20°C to +70°C. The sensors offer both digital programmable outputs and current or voltage analogue outputs, providing flexibility for different application needs.
The adjustable hysteresis function and programmable double digital outputs make these sensors ideal for level-specific applications. The multifunction LED indicator provides clear status updates, including output type, adjustment procedure, and NO/NC selection.
Additional features include short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring safe and reliable operation. The sensors are CE and cULus approved, with EMC compatibility according to IEC 60947-5-2 standards. Supplied with two M18x1 nuts and washers, these sensors are ready for immediate integration into your system.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 50mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- NPN
- Output Function:
- NO/NC
- Switching frequency:
- 10Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 70g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
