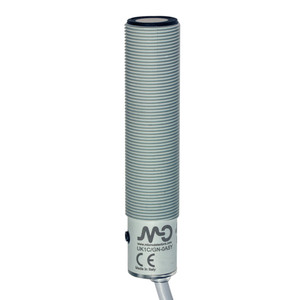

The Datasensing UK1C/G2-0ASY Sensors are designed for precision and reliability in various industrial applications. These sensors feature an M18 analog output with a range of 4-20mA, ensuring accurate data transmission. The models offer both digital programmable outputs and current or voltage analogue outputs, providing flexibility for different operational needs. With an adjustable hysteresis function, these sensors are ideal for level-specific applications, featuring programmable double digital outputs.
The working area can be easily adjusted using the Teach-in button, allowing for quick setup and operation. A multifunction LED indicator provides clear information on output type, adjustment procedures, NO/NC selection, and reverse analog output slope. The sensors boast a nominal sensing distance of 900mm, with a thermal drift of ±2% and a repeat accuracy of 0.50%. The beam angle is 10° ± 2°, and the resolution is ?3mm, ensuring high precision.
Additional features include thermal compensation, a minimum sensing distance of 100mm, and a linearity error of 1%. The sensors operate on a diffuse reflection principle, with a switching frequency of 4Hz and a response time of 500ms. They are designed to operate within a voltage range of 10 - 30Vdc, with a no-load supply current of ?50mA and a load current of 100mA. The sensors are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety.
Constructed with a robust PBT housing, these sensors are IP67 rated for mechanical protection, making them suitable for harsh environments. They come with a 2m PVC cable for easy connectivity and are supplied with two M18x1 nuts and two Ø 18 washers for secure installation. The sensors are CE and cULus approved, with EMC compatibility according to IEC 60947-5-2 standards, and are designed to withstand shocks and vibrations as per IEC EN60947-5-2 / 7.4. With an operating temperature range of -20°C to +70°C and a storage temperature range of -35°C to +80°C, these sensors are built to perform reliably in a wide range of conditions.
- Nominal sensing distance:
- 900mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 100mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 4...20mA
- Switching frequency:
- 4Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 110g
- Housing Material:
- PBT housing
- Connections:
- 2m PVC Cable
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
