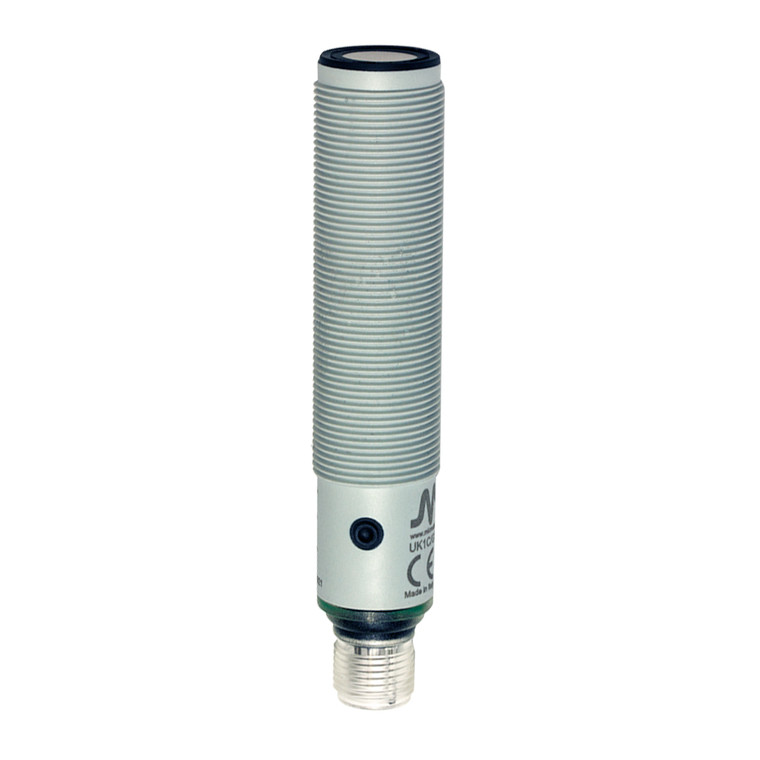

The Datasensing UK1C/G7-0ESY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a nominal sensing distance of 900mm with a thermal drift of ±2% and a repeat accuracy of 0.50%. The beam angle is 10° ± 2°, ensuring accurate detection within a resolution of ?3mm. The sensors are equipped with a Teach-in button for easy sensitivity adjustment and an adjustable hysteresis function of 1%.
With a diffuse reflection function principle, the sensors provide both PNP and 0...10V output types, allowing for NO/NC and positive/negative slope output functions. They operate at a switching frequency of 4Hz with a response time of 500ms, and require an operating voltage of 10 - 30Vdc. The sensors are designed to handle a load current of 100mA with a leakage current of 10?A at 30Vcc, and feature a maximum output voltage drop of 2.2V at IL=100mA.
The sensors are equipped with multifunction LED indicators for echo and output status, and include short-circuit, reverse polarity, and impulsive overvoltage protection. They are housed in a durable PBT material with an IP67 degree of protection, making them suitable for harsh environments. The sensors come with an M12 plug connection and are supplied with two M18x1 nuts and two Ø 18 washers for easy installation.
With a compact design of M18 x 1 / L = 91.6mm and a weight of 70g, these sensors are approved by CE and cULus, and comply with EMC compatibility standards IEC 60947-5-2. They are built to withstand shocks and vibrations as per IEC EN60947-5-2 / 7.4, and operate efficiently within a temperature range of -20°C to +70°C.
- Nominal sensing distance:
- 900mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 100mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP + 0...10V
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 4Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Minimum load resistence:
- 3k?
- Weight:
- 70g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
