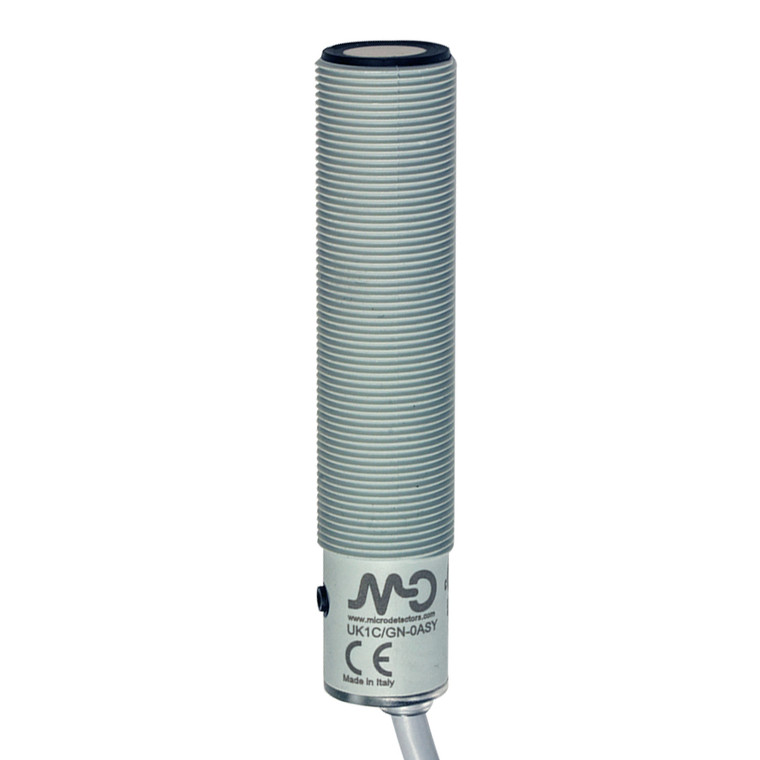

Datasensing UK1C/GP-0ASY Sensors
Datasensing
$318.52
The Datasensing UK1C/GP-0ASY Sensors are designed for precision and reliability in various industrial applications. These sensors feature a nominal sensing distance of 900mm and utilize a diffuse reflection function principle, ensuring accurate detection with a beam angle of 10° ± 2°. The sensors are equipped with a Teach-in button for easy sensitivity adjustment and an adjustable hysteresis function, making them versatile for different operational needs.
With models offering digital programmable outputs and current or voltage analogue outputs, these sensors provide flexibility in integration. The multifunction LED indicator assists in output type identification, adjustment procedures, and NO/NC selection, while also allowing for reverse analog output slope adjustments.
Built to withstand challenging environments, the sensors have a robust PBT housing and are rated IP67 for mechanical protection. They operate efficiently within a temperature range of -20°C to +70°C and are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection. The sensors come with a 2m PVC cable for easy connectivity and are approved by CE and cULus standards, ensuring compliance with international safety and performance regulations.
Ideal for applications requiring high repeat accuracy of 0.50% and a resolution of ?3mm, the Datasensing UK1C/GP-0ASY Sensors are a reliable choice for precise sensing tasks.
- Nominal sensing distance:
- 900mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 100mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP
- Output Function:
- NO/NC
- Switching frequency:
- 4Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 110g
- Housing Material:
- PBT housing
- Connections:
- 2m PVC Cable
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
