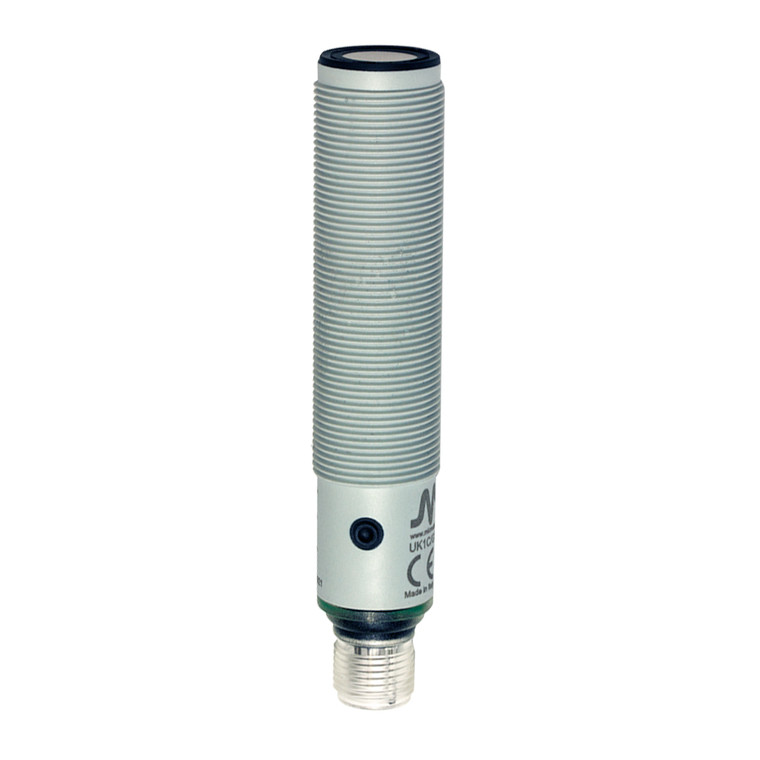

Datasensing UK1C/GP-0ESY Sensors
Datasensing
$313.30
The Datasensing UK1C/GP-0ESY Sensors are designed for precision and reliability in various industrial applications. These sensors feature a nominal sensing distance of 900mm and utilize a diffuse reflection function principle, ensuring accurate detection with a beam angle of 10° ± 2°. The sensors are equipped with a Teach-in button for easy sensitivity adjustment and an adjustable hysteresis function, making them ideal for level-specific applications.
With a robust PBT housing and IP67 mechanical protection, these sensors are built to withstand harsh environments, operating efficiently within a temperature range of -20°C to +70°C. The sensors offer a PNP output type with NO/NC output functions, and they are protected against short-circuits, reverse polarity, and impulsive overvoltage.
The multifunction LED indicators provide clear status updates, including output type and adjustment procedures. The sensors are compatible with M12 connections and come with supplied accessories, including two nuts and washers for secure installation. With CE and cULus approvals, these sensors meet high standards of safety and performance, making them a reliable choice for your sensing needs.
- Nominal sensing distance:
- 900mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 100mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP
- Output Function:
- NO/NC
- Switching frequency:
- 4Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 70g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
