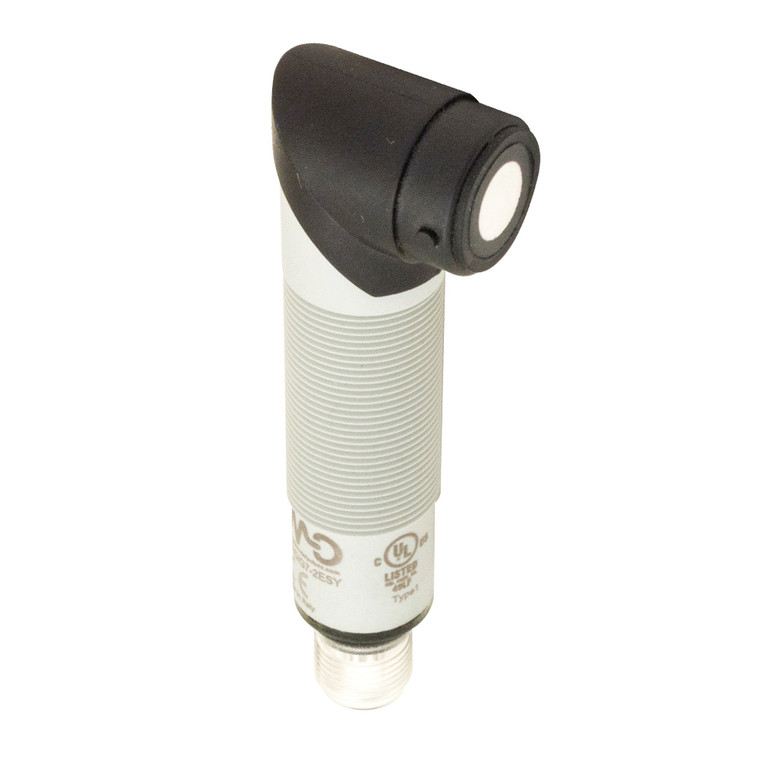

The Datasensing UK1C/GW-2ESY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 PNP adjustable hysteresis with a standard window and NO+NC configuration, these sensors offer a nominal sensing distance of 900mm and a minimum sensing distance of 100mm, ensuring accurate detection within a range of 100-900mm. The sensors are equipped with a Teach-in button for easy sensitivity adjustment and a multifunction LED indicator that provides clear feedback on output type, adjustment procedures, and more.
Built with a durable PBT housing, these sensors are designed to withstand harsh environments, with an operating temperature range of -20°C to +70°C and a storage temperature range of -35°C to +80°C. The sensors are protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring long-lasting performance. With a beam angle of 10° ± 2°, a resolution of ?3mm, and a switching frequency of 4Hz, these sensors deliver high precision and fast response times.
The UK1C/GW-2ESY Sensors are compatible with a wide range of applications, thanks to their diffuse reflection function principle and dual PNP output type with NO/NC multifunctions. They are easy to install with an M12 plug connection and come with supplied accessories, including two M18x1 nuts and two Ø 18 washers. Certified with CE and cULus approvals, these sensors meet the highest standards of safety and performance, making them an ideal choice for industrial automation and control systems.
- Nominal sensing distance:
- 900mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 100mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 2x PNP
- Output Function:
- NO/NC multifunctions
- Switching frequency:
- 4Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 75g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
