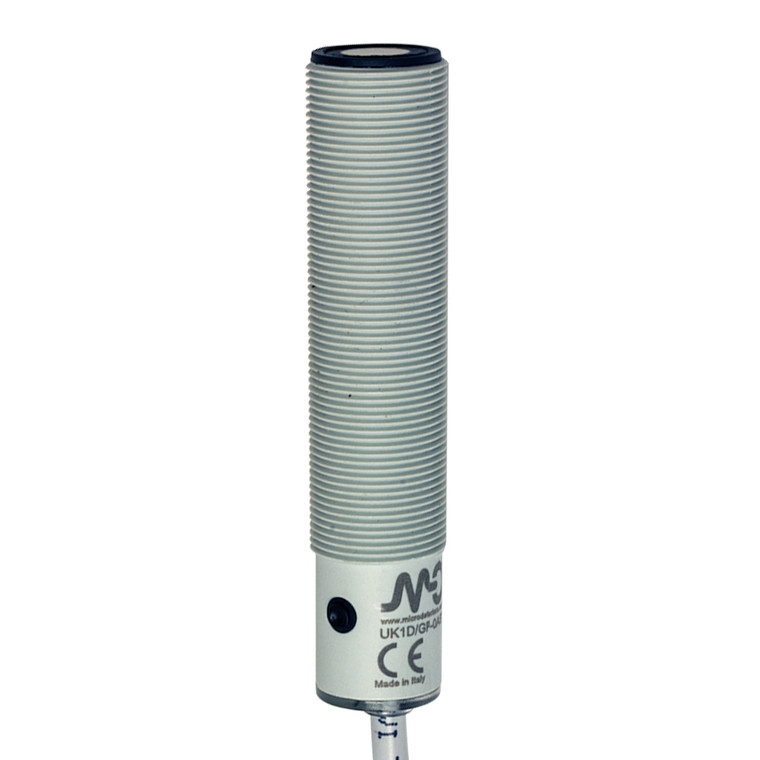

Datasensing UK1D/G2-0ASY Sensors

The Datasensing UK1D/G2-0ASY Sensors are designed for precision and reliability, featuring an M18 analog 4-20mA output with a convenient Teach-in button for easy setup. These sensors offer both digital programmable and current or voltage analogue outputs, allowing for versatile application. The adjustable hysteresis function, with programmable double digital outputs, is ideal for level-specific tasks. The working area can be adjusted using the window teach or single point teach method, ensuring quick deployment. A multifunction LED indicator provides clear feedback on output type, adjustment procedures, NO/NC selection, and reverse analog output slope. With a nominal sensing distance of 1600mm and a thermal drift of ±2%, these sensors ensure high accuracy with a repeat accuracy of 0.50% and a resolution of ?3mm. The diffuse reflection function principle, combined with a beam angle of 15° ± 2°, enhances detection capabilities. The sensors operate within a voltage range of 10 - 30Vdc, with a no-load supply current of ?50mA and a load current of 100mA. They are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety. Constructed with a robust PBT housing, the sensors are IP67 rated for mechanical protection, making them suitable for harsh environments. They come with a 2m PVC cable for easy connectivity and are supplied with two M18x1 nuts and two Ø 18 washers for secure installation. The sensors are CE and cULus approved, with EMC compatibility according to IEC 60947-5-2 standards, ensuring compliance and reliability in various industrial applications.
