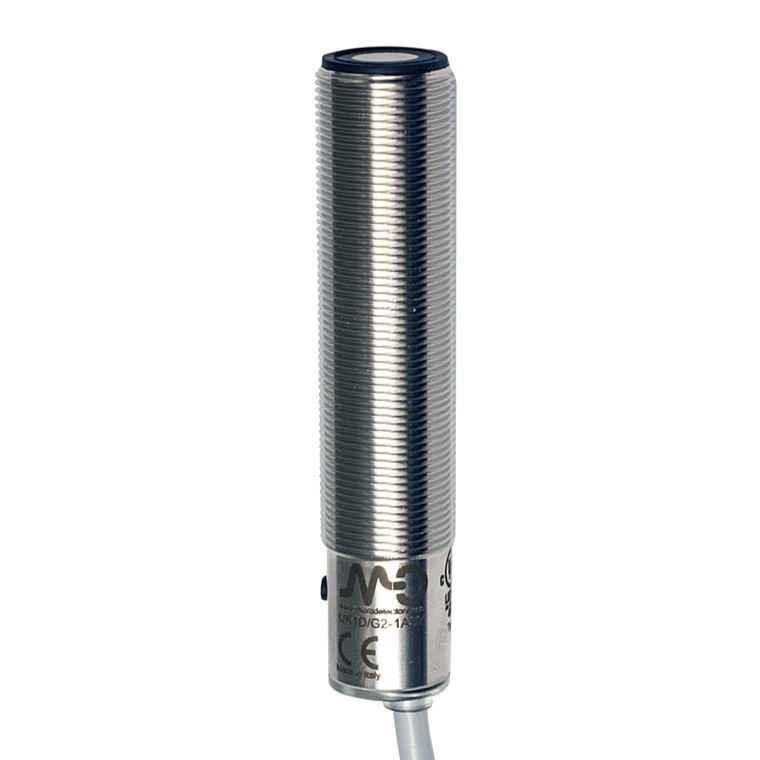

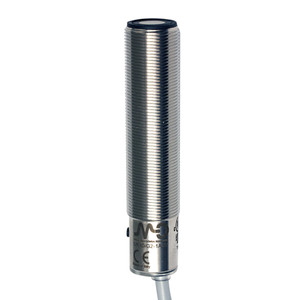

The Datasensing UK1D/G7-1ASY Sensors are high-performance ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a sensing range of 150-1600 mm with a 0-10 V+ PNP NO/NC output. Encased in durable AISI316L stainless steel, they are built to withstand harsh environments and are cULus approved. The sensors come equipped with a 2m PVC cable and a convenient teach-in button for easy setup and adjustment.
Key features include models with digital programmable outputs and current or voltage analogue outputs, an adjustable hysteresis function, and a multifunction LED indicator for output type, adjustment procedure, and NO/NC selection. The sensors boast a nominal sensing distance of 1600mm, a thermal drift of ±2%, and a repeat accuracy of 0.50%. With a beam angle of 15° ± 2°, a resolution of ?3mm, and a sensitivity adjustment via the teach-in button, these sensors ensure precise detection and measurement.
Additional specifications include a switching frequency of 3Hz, a response time of 500ms, and an operating voltage range of 10 - 30Vdc. The sensors are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable operation. They are designed to operate in temperatures ranging from -20°C to +70°C and are protected against shocks and vibrations as per IEC EN60947-5-2 standards. With an IP67 degree of protection, these sensors are ideal for a wide range of industrial applications. Supplied with two nuts and washers, they are ready for immediate installation.
- Nominal sensing distance:
- 1600mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 15° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 150mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP + 0...10V
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 3Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Minimum load resistence:
- 3k?
- Weight:
- 170g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- 2m PVC Cable
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 230kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
