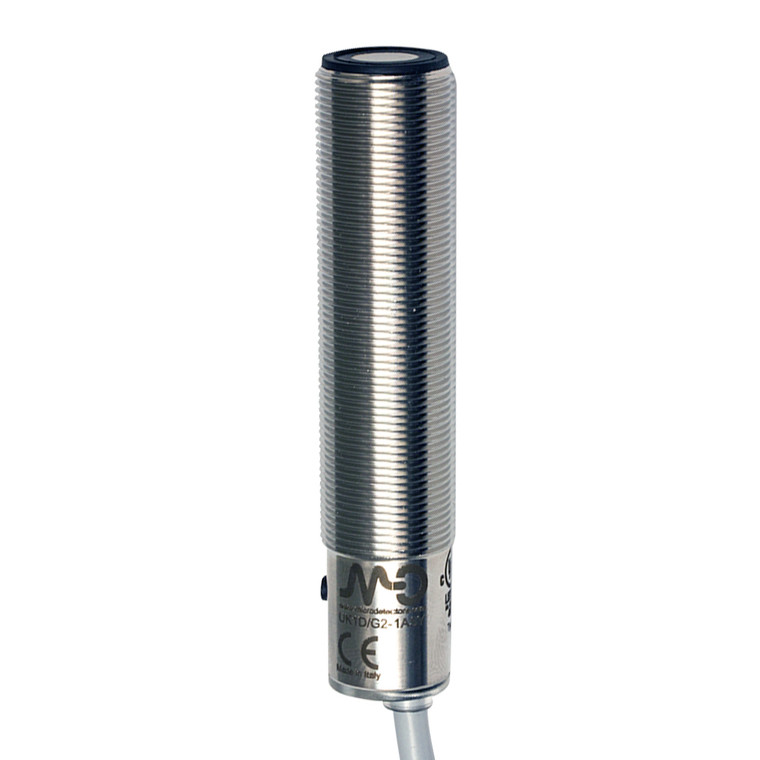

The Datasensing UK1D/GN-1ASY Sensors are high-performance ultrasonic sensors designed for precision and reliability. Featuring an M18 NPN NO/NC configuration, these sensors offer a nominal sensing distance of 1600mm with a minimum sensing distance of 150mm, ensuring accurate detection within a range of 150-1600mm. The sensors are equipped with a 2m PVC cable and a convenient teach-in button for easy sensitivity adjustment, making them suitable for various applications.
Constructed with robust AISI316L stainless steel housing, these sensors are built to withstand harsh environments, offering IP67 mechanical protection and compliance with CE cULus standards. The sensors feature a multifunction LED indicator that provides clear feedback on output type, adjustment procedures, and NO/NC selection, enhancing user experience and operational efficiency.
With a beam angle of 15° ± 2°, a resolution of ?3mm, and a repeat accuracy of 0.50%, these sensors deliver precise and consistent performance. The adjustable hysteresis function and programmable double digital outputs make them ideal for level-specific applications. Additionally, the sensors are equipped with thermal compensation, reverse polarity protection, short-circuit protection, and impulsive overvoltage protection, ensuring reliable operation in varying conditions.
Operating within a voltage range of 10 - 30Vdc, the sensors have a no-load supply current of ?50mA and a load current of 100mA, with a response time of 500ms and a switching frequency of 3Hz. The sensors are designed to handle shocks and vibrations as per IEC EN60947-5-2 / 7.4 standards, ensuring durability and longevity in demanding industrial settings. Supplied with two nuts M18x1 and two washers Ø 18, these sensors are ready for immediate installation and use.
- Nominal sensing distance:
- 1600mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 15° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 150mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- NPN
- Output Function:
- NO/NC
- Switching frequency:
- 3Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 170g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- 2m PVC Cable
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 230kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
