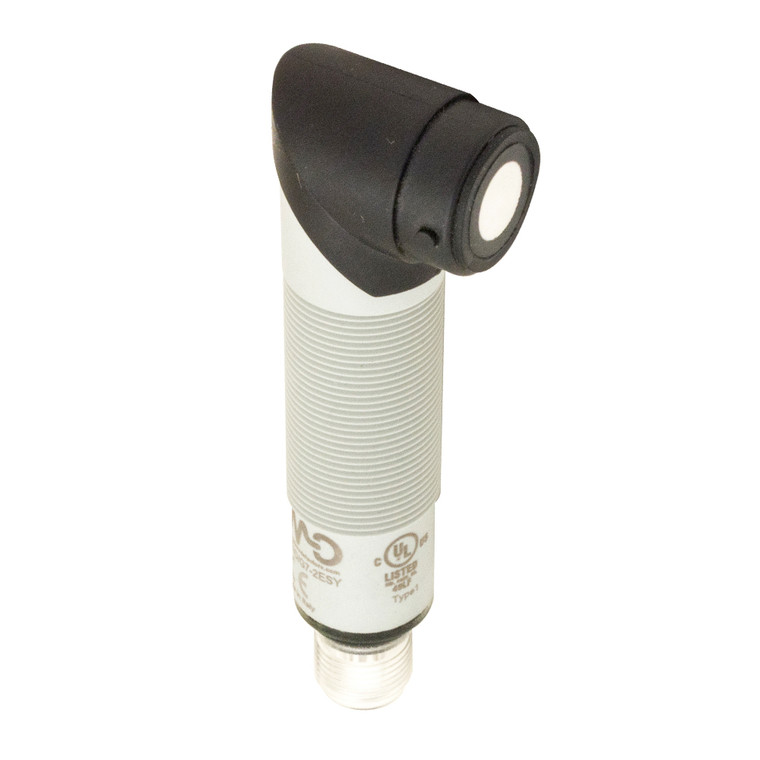

The Datasensing UK1F/G4-2ESY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a nominal sensing distance of 2200mm with a minimum sensing distance of 200mm, ensuring accurate detection in a variety of applications. The sensors are equipped with a 4-20 mA output and NPN NO/NC switching capabilities, allowing for versatile integration into existing systems.
With a robust PBT housing and IP67 protection, these sensors are built to withstand harsh environments, operating effectively in temperatures ranging from -20°C to +70°C. The sensors include a teach-in button for easy sensitivity adjustment and a multifunction LED indicator for clear status updates.
Additional features include adjustable hysteresis, thermal compensation, and a diffuse reflection function principle, making them ideal for level detection and other demanding applications. The sensors are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring long-term durability and performance.
The compact design, with dimensions of M18 x 1 / L = 88.3mm, and an M12 plug connection, allows for easy installation and integration. The sensors are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2, ensuring high-quality performance and reliability. Supplied with two nuts and washers, these sensors are ready for immediate deployment in your industrial applications.
- Nominal sensing distance:
- 2200mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 14° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 200mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- NPN + 4...20mA
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 2Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 75g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
