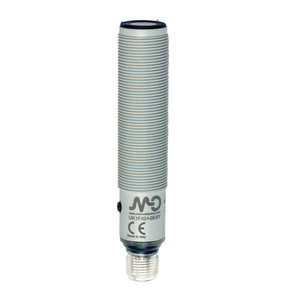

Datasensing UK1F/GM-0ESY Sensors
Datasensing
$445.02
The Datasensing UK1F/GM-0ESY Sensors are designed for precision and reliability in various industrial applications. These sensors feature a nominal sensing distance of 2200mm and utilize a diffuse reflection function principle, ensuring accurate detection with a resolution of ?3mm. The sensors are equipped with a Teach-in button for easy sensitivity adjustment and an adjustable hysteresis function, making them ideal for level-specific applications.
With a robust PBT housing and IP67 mechanical protection, these sensors are built to withstand harsh environments, operating efficiently within a temperature range of -20°C to +70°C. The multifunction LED indicators provide clear status updates, including output type and adjustment procedures, while the NO/NC multifunction output ensures versatile integration into existing systems.
The UK1F/GM-0ESY Sensors offer reliable performance with a switching frequency of 2Hz and a response time of 500ms. They are equipped with essential protections such as short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety. The sensors are CE and cULus approved, meeting EMC compatibility standards IEC 60947-5-2, and are supplied with two nuts and washers for easy installation.
- Nominal sensing distance:
- 2200mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 14° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 200mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 2x NPN
- Output Function:
- NO/NC multifunctions
- Switching frequency:
- 2Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 70g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
