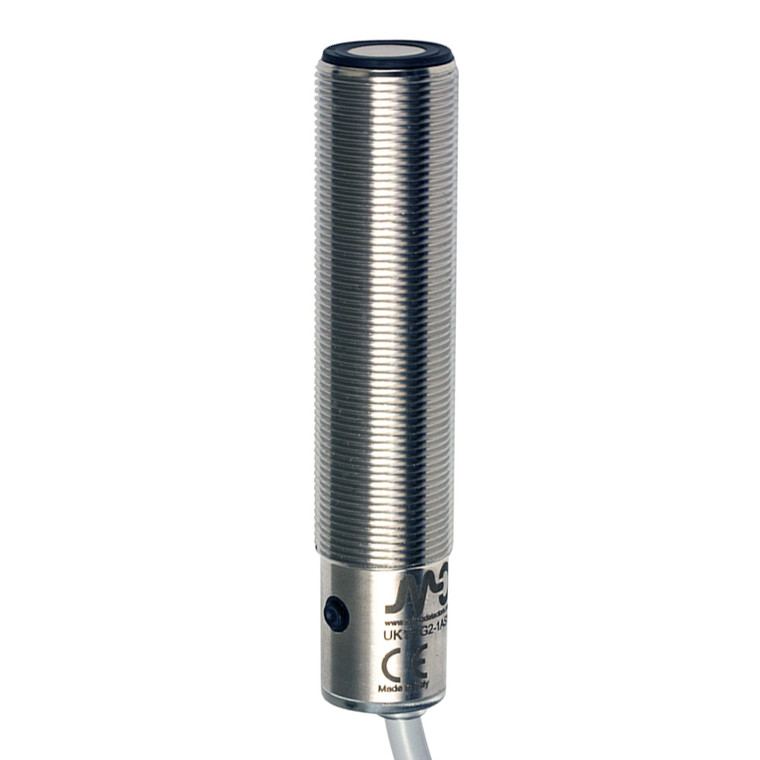

The Datasensing UK1F/GP-1ASY Sensors are designed for precision and reliability in industrial applications. These sensors feature a nominal sensing distance of 2200mm and utilize a diffuse reflection function principle, ensuring accurate detection with a repeat accuracy of 0.50%. The sensors are equipped with a Teach-in button for easy sensitivity adjustment and an adjustable hysteresis function, making them ideal for level-specific applications.
With a robust stainless steel AISI 316L housing, these sensors are built to withstand harsh environments, offering an IP67 degree of protection. They operate efficiently within a temperature range of -20°C to +70°C and are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection for enhanced durability. The sensors feature a multifunction LED indicator for easy monitoring of output type, adjustment procedures, and NO/NC selection.
The UK1F/GP-1ASY Sensors support both digital programmable outputs and current or voltage analogue outputs, providing flexibility for various applications. They are designed with a beam angle of 14° ± 2° and a resolution of ?3mm, ensuring precise performance. The sensors come with a 2m PVC cable for convenient connectivity and are approved by CE and cULus standards, ensuring compliance with international safety and quality regulations.
- Nominal sensing distance:
- 2200mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 14° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 200mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP
- Output Function:
- NO/NC
- Switching frequency:
- 2Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 170g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- 2m PVC Cable
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
