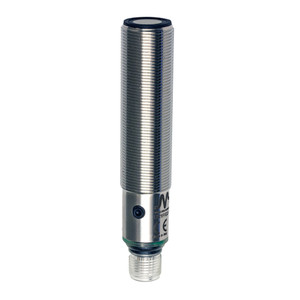

The Datasensing UK1F/GW-1ESY Sensors are designed for precision and reliability in various industrial applications. These sensors feature an M18 housing made from durable stainless steel AISI 316L, ensuring robust performance in challenging environments. With a nominal sensing distance of 2200mm and a beam angle of 14° ± 2°, they offer high accuracy with a repeat accuracy of 0.50% and a resolution of ?3mm. The sensors are equipped with a Teach-in button for easy sensitivity adjustment and an adjustable hysteresis function, making them versatile for different level detection tasks.
The UK1F/GW-1ESY models come with digital programmable outputs and options for current or voltage analogue outputs. They include a multifunction LED indicator that provides clear feedback on output type, adjustment procedures, and NO/NC selection. The sensors are protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring reliable operation with a switching frequency of 2Hz and a response time of 500ms.
Operating within a voltage range of 10 - 30Vdc, these sensors have a no-load supply current of ?50mA and a load current of 100mA. They are designed to withstand temperatures from -20°C to +70°C and are compliant with CE cULus approvals and EMC compatibility standards IEC 60947-5-2. With an IP67 degree of protection, the UK1F/GW-1ESY Sensors are ideal for use in environments where mechanical protection is crucial. Supplied with two nuts and washers, these sensors are ready for immediate installation and use.
- Nominal sensing distance:
- 2200mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 14° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 200mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 2x PNP
- Output Function:
- NO/NC multifunctions
- Switching frequency:
- 2Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 100g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
