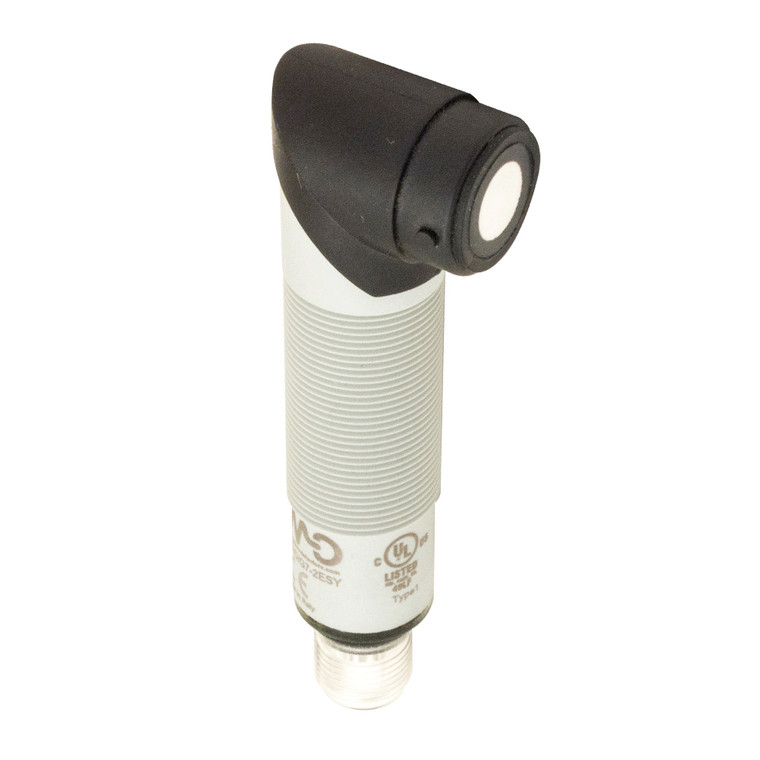

Datasensing UK1F/GW-2ESY Sensors

The Datasensing UK1F/GW-2ESY Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 PNP adjustable hysteresis with a standard window, these sensors offer both NO and NC output functions, making them versatile for various applications. With a sensing range of 200-2200 mm and a convenient M12 connection, they are equipped with a teach-in button for easy setup and adjustment. The robust plastic housing is designed at a 90° angle, ensuring durability and compliance with cULus standards. These sensors come with digital programmable outputs and options for current or voltage analogue outputs, allowing for flexible integration into different systems. The adjustable hysteresis function, along with programmable double digital outputs, is specifically tailored for level detection. The working area can be adjusted using the teach-in button, which is suitable for all models, ensuring a quick and efficient setup. A multifunction LED indicator provides clear feedback on output type, adjustment procedures, NO/NC selection, and reverse analog output slope. With a nominal sensing distance of 2200mm and a thermal drift of ±2%, these sensors maintain high accuracy with a repeat accuracy of 0.50% and a resolution of ?3mm. The beam angle is 14° ± 2°, and the sensors feature a diffuse reflection function principle. Operating within a voltage range of 10 - 30Vdc, these sensors have a no-load supply current of ?50mA and a load current of 100mA. They are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring reliable performance in various environments. The sensors are housed in a PBT material with an IP67 degree of protection, making them suitable for harsh conditions. They are approved by CE and cULus and comply with EMC compatibility standards IEC 60947-5-2.
