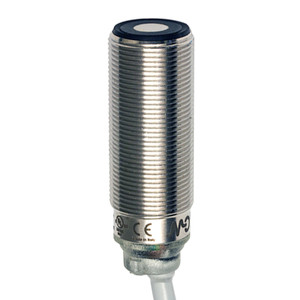

Datasensing UK6A/HP-1AUL Sensors
Datasensing
$231.62
The Datasensing UK6A/HP-1AUL Sensors are advanced M18 diffuse reflection sensors designed for precision and reliability. With a nominal sensing distance of 300mm and a thermal drift of Sr at ?2%, these sensors ensure accurate performance in various applications. The short housing design, made from durable stainless steel AISI 316L, provides robust protection and longevity.
Equipped with both digital and analogue outputs, the sensors offer versatile connectivity options. The PNP output type supports NO/NC functions, with a switching frequency of 8Hz and a response time of 400ms, making them suitable for dynamic environments. The sensors feature a teach-in button for easy sensitivity adjustment, and their resolution is ?2mm, ensuring precise detection.
The UK6A/HP-1AUL Sensors are engineered with comprehensive protection features, including short-circuit, reverse polarity, and impulsive overvoltage protection. They operate efficiently within a voltage range of 10 - 30Vdc, with a no-load supply current of ?35mA. The sensors are designed to withstand harsh conditions, with an operating temperature range of -20°C to +70°C and an IP67 degree of protection.
Additional features include LED indicators for echo and output status, a beam angle of 7° ± 2°, and a minimum sensing distance (blind zone) of 40mm. The sensors come with supplied accessories, including two nuts and washers, ensuring easy installation. With CE cULus approvals and EMC compatibility, the Datasensing UK6A/HP-1AUL Sensors are a reliable choice for industrial sensing needs.
- Nominal sensing distance:
- 300mm
- Thermal drift of Sr:
- ?2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 7° ± 2°
- Resolution:
- ?2mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 40mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- PNP
- Output Function:
- NO/NC
- Switching frequency:
- 8Hz
- Response time:
- 400ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?35mA @Val = 30V
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 140g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- 2m PVC Cable
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
