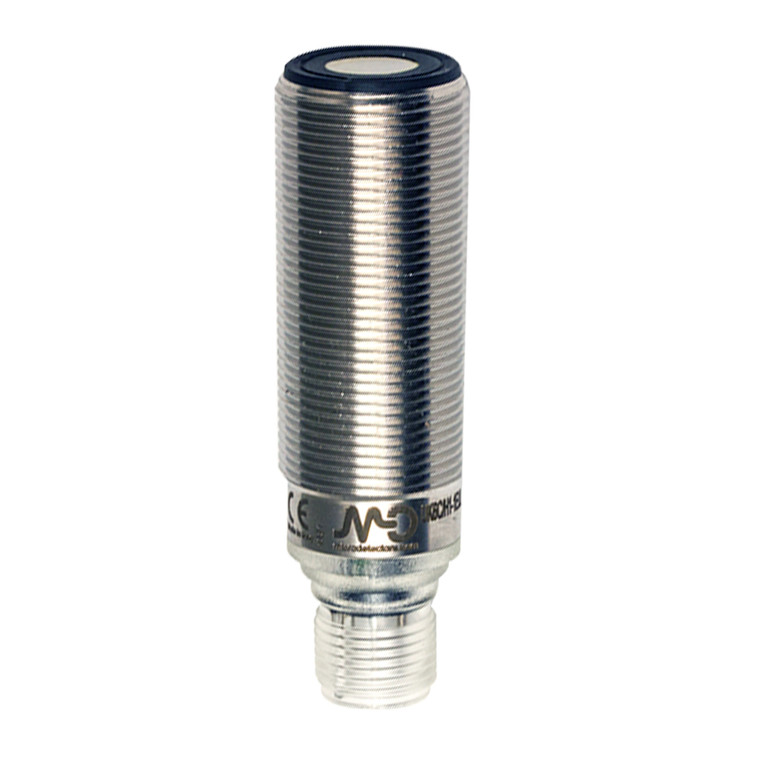

The Datasensing UK6C/H2-1EUL Sensors are advanced M18 diffuse reflection sensors designed for precision and reliability. With a nominal sensing distance of 800mm and a thermal drift of Sr ?2%, these sensors ensure accurate performance in various applications. The sensors feature a short housing and offer both digital and analogue outputs, with a 4-20mA output type for versatile integration.
Equipped with a teach-in button for sensitivity adjustment, the sensors provide a resolution of ?3mm and a beam angle of 8° ± 2°. They are designed to operate efficiently with a switching frequency of 5Hz and a response time of 500ms. The robust stainless steel AISI 316L housing ensures durability, while the IP67 protection rating guarantees resistance to dust and water.
The sensors are equipped with LED indicators for easy status monitoring, and they include essential protections such as short-circuit, reverse polarity, and impulsive overvoltage protection. With an operating voltage range of 10 - 30Vdc and a no-load supply current of ?35mA, these sensors are energy-efficient and reliable.
Ideal for environments with operating temperatures ranging from -20°C to +70°C, the Datasensing UK6C/H2-1EUL Sensors are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2. They come with supplied accessories, including two M18x1 nuts and two Ø 18 washers, ensuring easy installation and secure mounting.
- Nominal sensing distance:
- 800mm
- Thermal drift of Sr:
- ?2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 8° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 60mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 4...20mA
- Switching frequency:
- 5Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?35mA @Val = 30V
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 80g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 230kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
