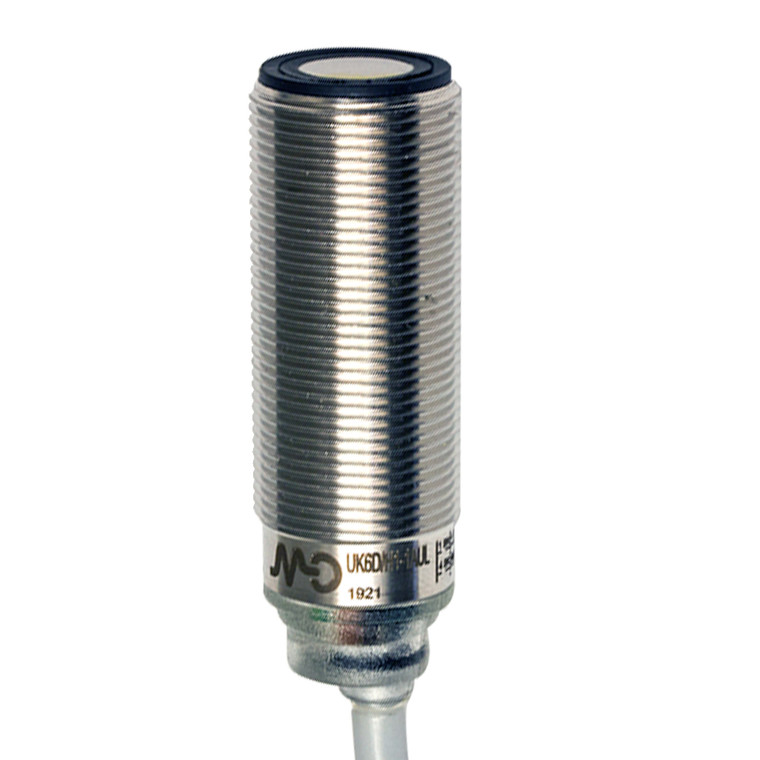

Datasensing UK6D/H1-1AUL Sensors
Datasensing
$297.64
The Datasensing UK6D/H1-1AUL Sensors are high-performance ultrasonic sensors designed for precision and reliability. Featuring an M18 diffuse reflection function, these sensors offer both digital and analogue outputs, with a nominal sensing distance of 1200mm and a minimum sensing distance of 80mm. The sensors are equipped with a teach-in button for easy sensitivity adjustment and boast a resolution of ?3mm, ensuring accurate detection. Constructed with AISI316L stainless steel housing, they are built to withstand harsh environments, offering IP67 protection and operating temperatures ranging from -20°C to +70°C. The sensors are equipped with a 2m PVC cable and include short-circuit, reverse polarity, and impulsive overvoltage protection for enhanced safety. With a beam angle of 8° ± 2°, a switching frequency of 5Hz, and a response time of 500ms, these sensors are ideal for various industrial applications. The product is CE and cULus approved, ensuring compliance with international standards.
- Nominal sensing distance:
- 1200mm
- Thermal drift of Sr:
- ?2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 8° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 80mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 0...10V
- Switching frequency:
- 5Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?35mA @Val = 30V
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Minimum load resistence:
- 3k?
- Weight:
- 140g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- 2m PVC Cable
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
