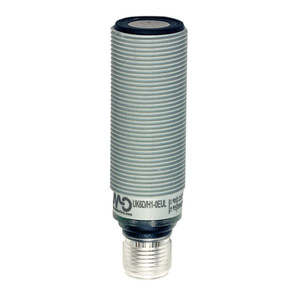

The Datasensing UK6D/H2-0EUL Sensors are advanced ultrasonic sensors designed for precision and reliability. Featuring an M18 diffuse reflection function, these sensors offer a nominal sensing distance of 1200mm with a minimum blind zone of 80mm. The sensors provide both digital and analogue outputs, with a 4-20 mA output type, ensuring versatile application possibilities.
Equipped with a teach-in button for easy sensitivity adjustment, the sensors boast a repeat accuracy of 0.50% and a resolution of ?3mm. The beam angle is precisely controlled at 8° ± 2°, and the sensors include thermal compensation to maintain performance across a wide operating temperature range of -20°C to +70°C.
The robust PBT housing ensures durability, while the IP67 protection rating guarantees resistance to dust and water ingress. The sensors are equipped with LED indicators for easy status monitoring, and they include comprehensive protection features such as short-circuit, reverse polarity, and impulsive overvoltage protection.
With a compact design measuring M18 x 1 / L = 60.3mm and weighing just 65g, these sensors are easy to install using the supplied M12 plug connections. The package includes two nuts and washers for secure mounting. Approved by CE and cULus, and compliant with IEC 60947-5-2 standards, the Datasensing UK6D/H2-0EUL Sensors are an ideal choice for applications requiring high precision and reliability.
- Nominal sensing distance:
- 1200mm
- Thermal drift of Sr:
- ?2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 8° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 80mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 4...20mA
- Switching frequency:
- 5Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?35mA @Val = 30V
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 65g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
