Datasensing UK6D/HP-0AUL Sensors

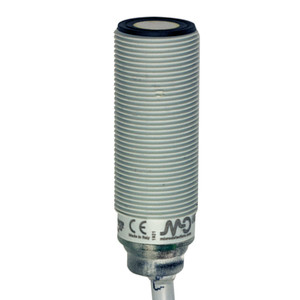

The Datasensing UK6D/HP-0AUL Sensors are high-performance ultrasonic sensors designed for precision and reliability. Featuring an M18 diffuse reflection design with a short housing, these sensors offer both digital and analogue outputs. With a nominal sensing distance of 1200mm and a minimum sensing distance of 80mm, they are ideal for a variety of applications. The sensors boast a thermal drift of Sr ?2%, a repeat accuracy of 0.50%, and a beam angle of 8° ± 2°. They provide a resolution of ?3mm and allow for sensitivity adjustment via a convenient teach-in button. The sensors operate on a PNP output type with NO/NC output functions, supporting a switching frequency of 5Hz and a response time of 400ms. They are designed to function within an operating voltage range of 10 - 30Vdc, with a no-load supply current of ?35mA at 30V. The sensors can handle a load current of 100mA and have a leakage current of 10?A at 30Vcc. The output voltage drop is capped at 2.2Vmax at IL=100 mA, with a maximum ripple content of 5%. Equipped with green and yellow LED indicators for echo and output status, these sensors ensure easy monitoring. They feature robust protection mechanisms, including short-circuit, reverse polarity, and impulsive overvoltage protection. The sensors are housed in durable PBT material, with a mechanical protection rating of IP67, making them suitable for harsh environments. They come with a 2m PVC cable for easy installation and are supplied with two M18x1 nuts and two Ø 18 washers. The sensors are approved by CE and cULus, ensuring compliance with international standards. They are EMC compatible with IEC 60947-5-2 and can withstand shocks and vibrations as per IEC EN60947-5-2 / 7.4. With an operating temperature range of -20°C to +70°C and a storage temperature range of -35°C to +80°C, these sensors are built to perform reliably in a wide range of conditions.
