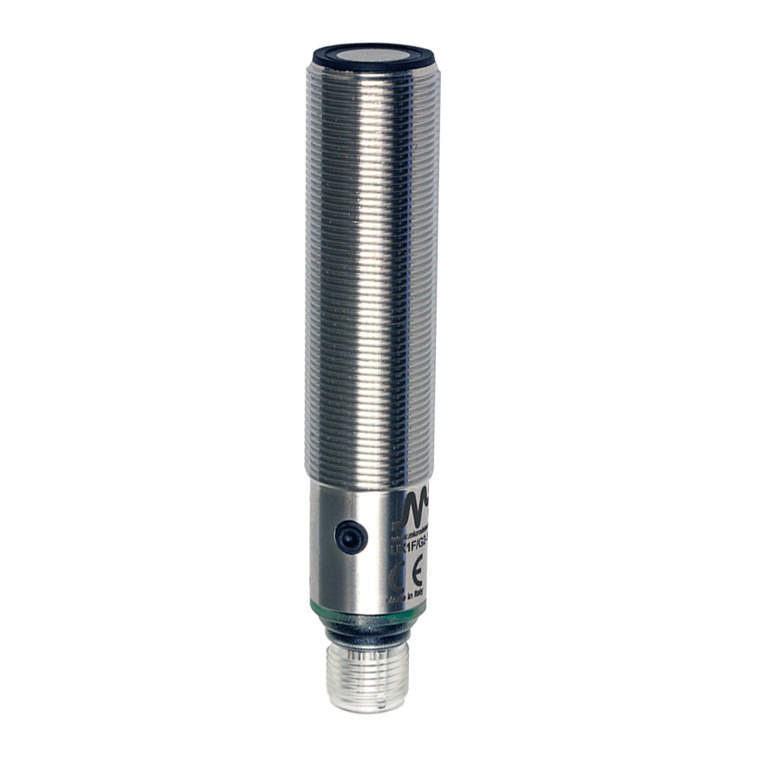

Datasensing UKR1F/GM-1ESY Sensors
Datasensing
$445.52
The Datasensing UKR1F/GM-1ESY Sensors are advanced ultrasonic retroreflective sensors designed for precision and reliability. Featuring a robust AISI316L stainless steel housing, these sensors are built to withstand harsh environments while maintaining optimal performance. With a nominal sensing distance of 2200mm and a minimum sensing distance of 200mm, they offer a wide detection range suitable for various applications. The sensors are equipped with a teach-in button for easy sensitivity adjustment and a multifunction LED indicator that provides clear feedback on output type, adjustment procedures, and more.
These sensors boast a high repeat accuracy of 0.50% and a resolution of ?3mm, ensuring precise measurements. The adjustable hysteresis function and programmable double digital outputs make them ideal for level-specific applications. They operate on a voltage range of 10 - 30Vdc, with a low no-load supply current of ?50mA, and are protected against short-circuits, reverse polarity, and impulsive overvoltage.
The UKR1F/GM-1ESY Sensors are designed with a beam angle of 14° ± 2°, a switching frequency of 2Hz, and a response time of 500ms. They are EMC compatible and meet IEC 60947-5-2 standards for shocks and vibrations. With an IP67 degree of protection, these sensors are dust-tight and water-resistant, making them suitable for demanding industrial environments. Supplied with M18x1 nuts and washers, they are easy to install and integrate into existing systems.
- Nominal sensing distance:
- 2200mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 14° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 200mm
- Linearity error:
- 1%
- Minimum distance from background:
- 300mm
- Function Principle:
- Retroreflective
- Output type:
- 2x NPN
- Output Function:
- NO + NC
- Switching frequency:
- 2Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 100g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
