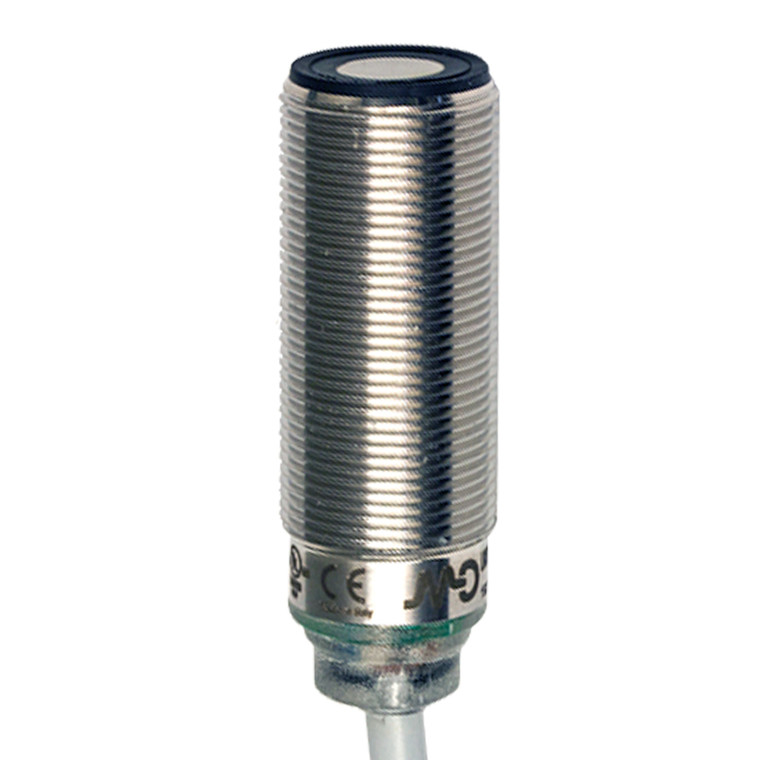

Datasensing UKR6C/HP-1AUL Sensors
Datasensing
$238.77
The Datasensing UKR6C/HP-1AUL Sensors are high-performance M18 diffuse sensors designed for precision and reliability. With a nominal sensing distance of 720mm and a thermal drift of Sr ?2%, these sensors ensure accurate detection in various applications. The sensors feature a short housing made from durable stainless steel AISI 316L, providing robust protection and longevity.
Equipped with both digital and analogue outputs, the UKR6C/HP-1AUL offers flexibility in integration. The PNP output type supports both NO and NC functions, while the teach-in button allows for easy sensitivity adjustment. The sensors boast a beam angle of 8° ± 2°, a resolution of ?3mm, and a hysteresis of 1%, ensuring precise operation.
Designed with user safety and convenience in mind, these sensors include short-circuit, reverse polarity, and impulsive overvoltage protection. The LED indicators provide clear status updates, with green indicating echo and yellow for output. Operating efficiently within a voltage range of 10 - 30Vdc, the sensors have a low no-load supply current of ?35mA and a load current capacity of 100mA.
The UKR6C/HP-1AUL sensors are built to withstand harsh environments, with an IP67 degree of protection and compliance with IEC 60947-5-2 standards for EMC compatibility, shocks, and vibrations. They operate effectively in temperatures ranging from -20°C to +70°C and can be stored safely between -35°C and +80°C without freezing.
Supplied with two M18x1 nuts and two Ø 18 washers, these sensors are easy to install and maintain. Ideal for applications requiring precise and reliable sensing, the Datasensing UKR6C/HP-1AUL Sensors are a versatile choice for industrial automation needs.
- Nominal sensing distance:
- 720mm
- Thermal drift of Sr:
- ?2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 8° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 60mm
- Linearity error:
- 1%
- Minimum distance from background:
- 80mm
- Function Principle:
- Retroreflective
- Output type:
- PNP
- Output Function:
- NO/NC
- Switching frequency:
- 5Hz
- Response time:
- 400ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?35mA @Val = 30V
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 140g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- 2m PVC Cable
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 230kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
