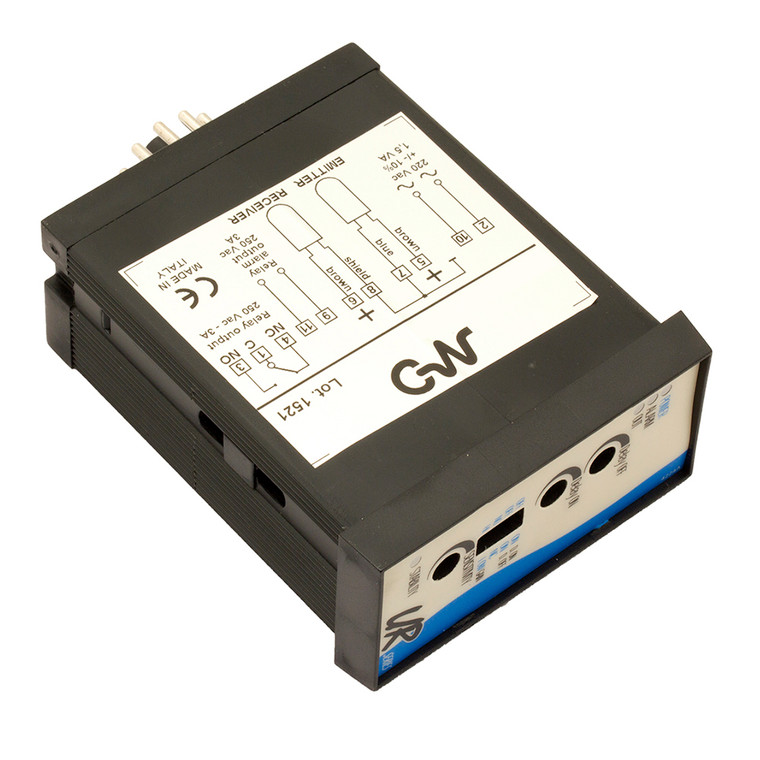

The Datasensing URD/00 Sensors are designed for optimal performance in challenging environments, featuring a robust photoelectric sensor with amplification capabilities. These sensors operate on a 24VAC power supply and are equipped with LED indicators for alignment stability, operating voltage, alarm, and output state. They offer versatile AC or DC operating voltage options, with relay output and alarm output functionalities. The unit includes a double timer with independent adjustments and sensitivity adjustment, allowing for precise control.
With the ability to mount on panels, these IP68-rated sensors are ideal for harsh environments, providing a sensing distance of up to 60 meters in high mode and 30 meters in low mode. The sensors are CE approved and conform to EMC directives, ensuring reliable performance. They feature a switching frequency of 10Hz, a no-load supply current of 1.5 VA, and operate within a frequency range of 50 to 60Hz. The maximum output voltage is 250V, with a maximum output current of 3A.
The sensors are housed in durable Noryl 90 V-0 material, with dimensions of 36x90x67mm and a weight of 110g. They operate efficiently in temperatures ranging from -10°C to +50°C, without freezing. The mechanical protection is rated at IP20, ensuring durability and longevity in demanding applications.
- Switching frequency:
- 10Hz
- Operating Voltage:
- 24Vac
- No-Load supply current:
- 1,5 VA
- LED indicators:
- green (supply) red (output state) green (stability) red (alarm)
- Frequency:
- 50 60Hz
- Max output voltage:
- 250V
- Max output current:
- 3A
- Operating time (relè de-energized):
- ? 40ms
- Reset time (relè energized):
- ? 40ms
- Voltage tolerance:
- +10% -15%
- Operating output:
- Relay NO+NC
- Relay with alarm output:
- no
- Weight:
- 110g
- Housing Material:
- Noryl 90 V-0
- Approvals:
- CE
- EMC compatibility:
- Conforming with EMC directive according with EN60947-5-2
- Degree of protection:
- IP20
- Mechanical Protection:
- IP20
