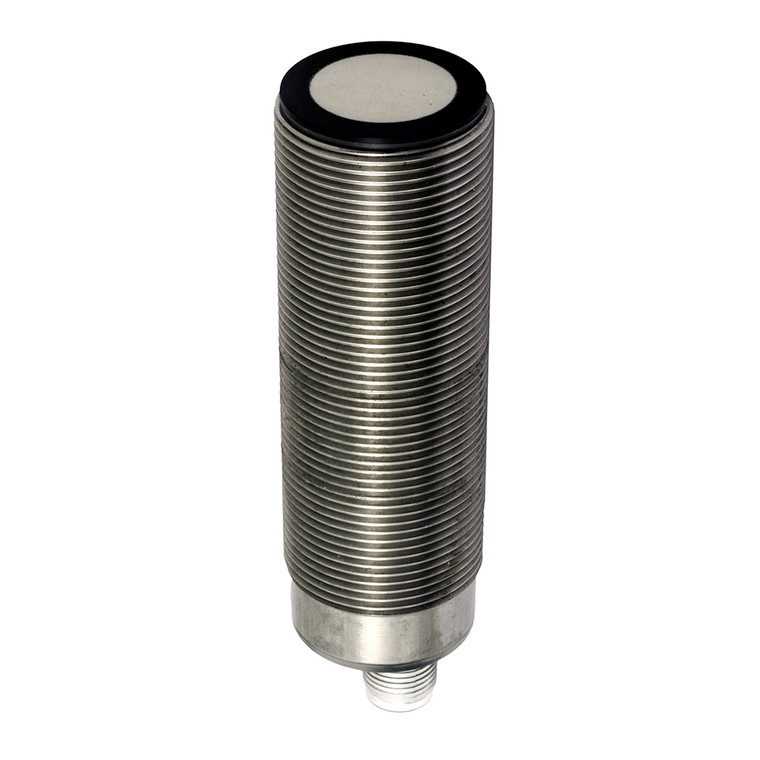

The Datasensing UT1B/GM-1ESY Sensors are high-performance M30 ultrasonic sensors designed for precision and reliability in various industrial applications. Featuring an adjustable hysteresis and standard window, these sensors offer both NO and NC multifunction outputs, making them versatile for different detection needs. With a sensing range of 250-3500 mm, they are equipped with an M12 connection and a convenient teach-in button for easy setup and calibration. Constructed from durable AISI316L stainless steel, these sensors are cULus certified, ensuring compliance with safety standards.
The UT1B/GM-1ESY model boasts a large front for enhanced performance and extended sensing distances. It includes an adjustable working area, allowing users to switch between window mode and object mode effortlessly. The sensor is equipped with two multifunction LEDs: an orange LED for adjustment procedures and output type indication, and a green LED for target alignment, ensuring precise operation.
Designed with a robust plastic and stainless steel housing, the sensor offers flexibility with either an M12 plug or a 4-pin cable exit. The teach-in button allows for quick sensitivity adjustments, optimizing resolution and performance. With features like short-circuit protection, reverse polarity protection, and impulsive overvoltage protection, these sensors are built to withstand challenging environments. Ideal for level detection and other applications requiring reliable ultrasonic sensing, the Datasensing UT1B/GM-1ESY Sensors deliver exceptional accuracy and durability.
