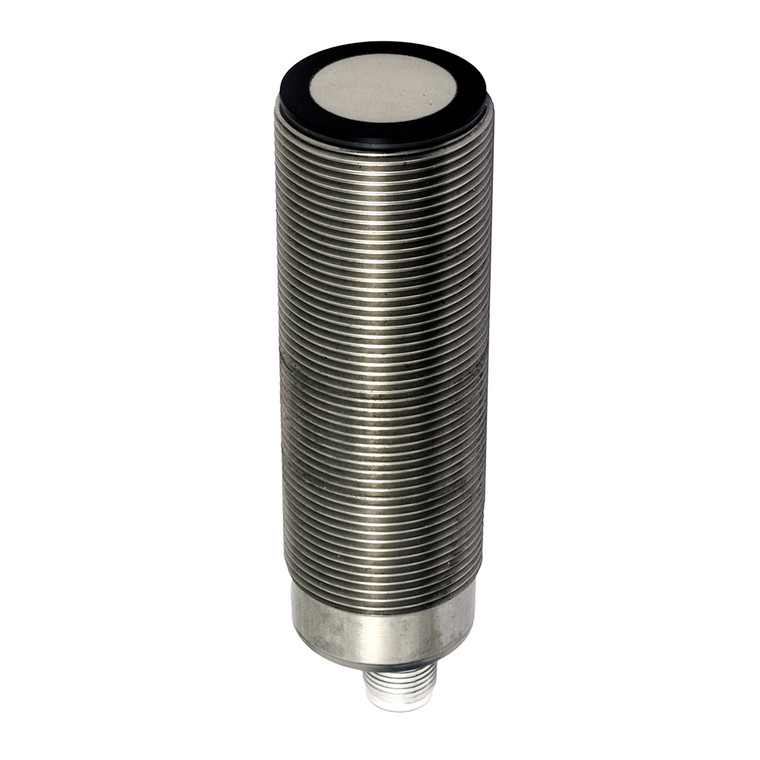

Datasensing UT1B/H7-1EUL Sensors
Datasensing
$529.73
The Datasensing UT1B/H7-1EUL Sensors are high-performance M30 ultrasonic sensors designed for precise and reliable detection. Featuring an analog output of 0-10 V with PNP NO/NC configuration, these sensors offer a sensing range of 250-3500 mm. The robust AISI316L stainless steel housing ensures durability and resistance to harsh environments, while the M12 connection with teach-in by cable allows for easy setup and configuration.
These sensors are equipped with an adjustable hysteresis function and double digital programmable output, making them ideal for level detection applications. The models offer both voltage and current output options, with a programmable slope to optimize resolution. The adjustable working area can be set in window mode or object mode using the Teach-in button, facilitating quick and easy installation.
Two multifunction LEDs provide clear visual feedback: an orange LED indicates the adjustment procedure and output type, while a green LED assists with target alignment. The sensors are available with either plastic or AISI 316L stainless steel housing, and feature a plug M12 or cable exit with a 4-pin configuration.
With features like short-circuit protection, reverse polarity protection, and impulsive overvoltage protection, these sensors are built to withstand challenging conditions. They are cULus approved and offer EMC compatibility, ensuring reliable performance in various industrial applications.
