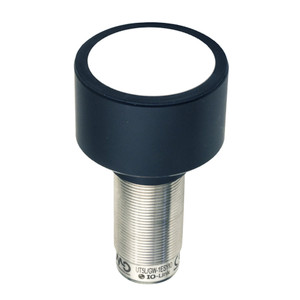

Datasensing UT5L/G6-1ESYIO Sensors
Datasensing
$1,081.08
The Datasensing UT5L/G6-1ESYIO Sensors are high-performance ultrasonic sensors designed for precision and reliability. Encased in a robust AISI316L stainless steel M30 housing, these sensors feature a large shape transducer with a diameter of 61mm, offering exceptional sensing distances ranging from 600 to 8000 mm. The sensors provide an analog output of 4-20 mA and support PNP NO/NC configurations, ensuring versatile application possibilities.
Equipped with an M12 connection and a convenient teach-in button, these sensors allow for easy installation and configuration. The adjustable hysteresis function and programmable slope enhance resolution and adaptability, making them ideal for level detection and other demanding applications. The sensors also feature two multifunction LEDs for easy adjustment and target alignment, ensuring optimal performance in various environments.
With a diffuse reflection function principle and IO-Link compatibility, the Datasensing UT5L/G6-1ESYIO Sensors offer advanced functionality and integration capabilities. They are designed to withstand harsh conditions, with features like short-circuit protection, reverse polarity protection, and impulsive overvoltage protection. The sensors operate efficiently across a wide temperature range, making them suitable for diverse industrial applications.
- Sensitivity adjustment:
- Teach-in button
- Function Principle:
- Diffuse reflection
- Output type:
- IO-Link/PNP + 4 20mA
- Output Function:
- NO/NC + positive/negative slope
- Connections:
- M12 Plug
- Diameter/Dimension:
- M30
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
- User Manuals:
- View
- Software:
- View
- Quick References:
- View" target="_blank">View
